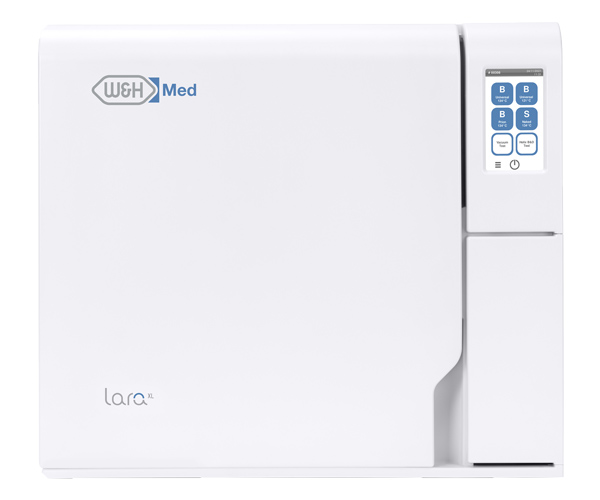

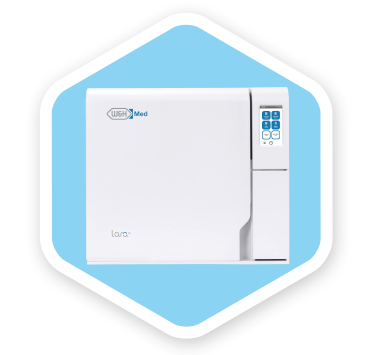

Lara XL sterilizer

Xceeds Limits

The device convinces with even more capacity, energy-saving and fast type B cycles. Its connectivity and advanced traceability options make the sterilizer ready for all individual needs now or in the future. Moreover, the easy navigation guarantees complete control of the workflow, saves time and offers full protection for you and your patients.

  • Lara XL device

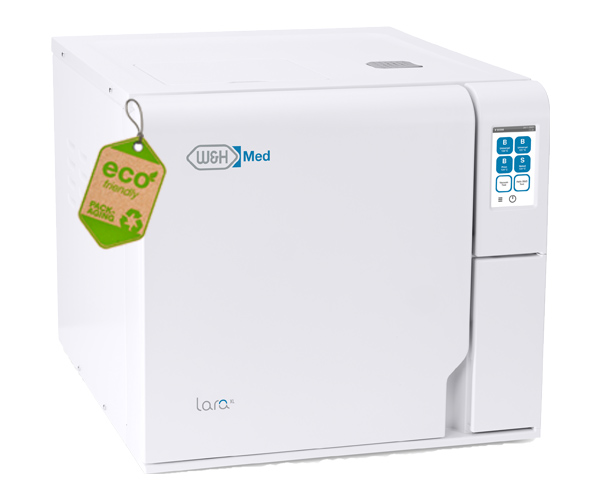

    LaraXL with eco packaging label

    Lara XL will exceed your expectations

    The technical expertise makes the difference. The Lara XL sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.

    Xceeding because

    • Eco Dry + technology
    • High capacity
    • Unique connectivity and upgradeability
    • Advanced traceability options
    • Easy to navigate
    • Drying quality
    • Environmentally friendly packaging
      The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.

    • Eco Dry +

      Xceeding performance



      The advanced patented Eco Dry + technology adjusts the drying time to the mass of the load. This reduces the cycle
      time, increases the life span of your instruments and optimises the energy consumption.

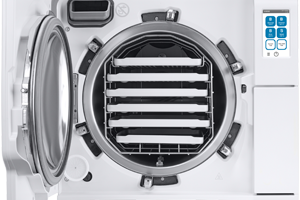

    • Capacity

      Xceeding capacity

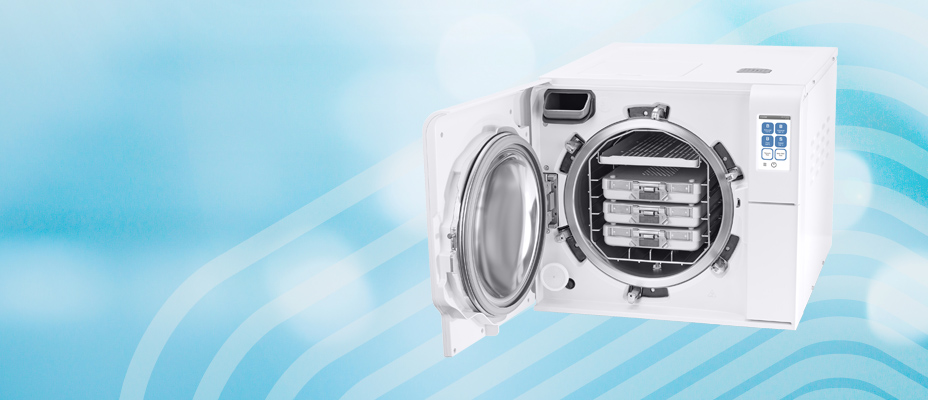

      With its 28 litre chamber, Lara XL is able to reprocess up to 7 kg of wrapped instruments or 9 kg containers. Thanks to its 6-tray rack, it is extremely flexible.

    • Connectivity

      Xceeding connectivity



      Lara XL is based on a sophisticated and future-oriented technical concept. Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.


      Innovations such as the W&H Steri App are forward-looking ways of integrating practical digital tools into the workflow.

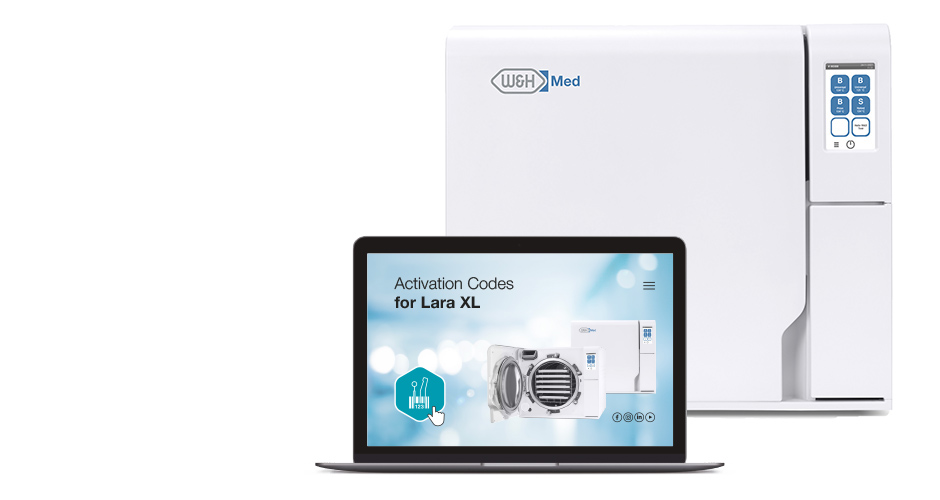

    • Activation Codes

      Xceeding upgradeability



      Needs and requirements can change.
      With the Activation Code system, additional functions can be activated to reflect your changing practice needs and meet future requirements.

      Lara XL can be upgraded with the W&H Activation Code: EliTrace.

    • Easy operation

      Xceeding usability

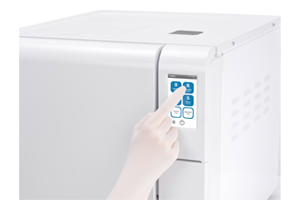

      The intelligent menu structure of the new Lara XL sterilizer ensures extraordinarily high operating comfort: You can navigate to the different functions quickly and intuitively using the large colour touch display.


      Xceed Limits with Lara XL

      Eco Dry+ technology

      Fast cycles and energy saving.

      Advanced traceability

      Set a new standard with EliTrace.
      More Info!

      Ready for future

      Unique connectivity and upgradeability.
      More Info!

      Easy to navigate

      Colour touch display and intuitive menu structure.

      High capacity

      28 litre chamber

      Drying quality

      Is a must for maintaining sterile conditions during load storage. Lara XL ensures an excellent drying quality of the complete load.

      Unique feature upgrades


      Prepare yourself now with the Activation Codes



      Additional features at a glance:

      Discover warranty upgrade

      The Activation Code “Warranty Extension” extends the warranty of the sterilizer by 12 months.

      Six steps to your customized sterilizer:

      1. Purchase the Activation Code of your choice from your local approved dental supplier.
      2. After receiving the related login code, go to activation-med.wh.com
      3. Specify this code along with the serial number and model of your sterilizer.
      4. Your individual, secure Activation Code is generated.
      5. Enter this code in the menu of your sterilizer.
      6. The feature is available.

      EliTrace

      EliTrace is the advanced documentation system that offers for the first time full traceability down to the single instrument or kit without any extra software or computers.

      The result: a high level of safety for practices and patients.

      Collecting data

      Collecting data

      The first step towards full traceability is creating a database of all instruments and kits. This can be done directly by touching the screen – but also via PC or W&H Steri App.

      Various types of instruments and kits are pre-set. But there is also the possibility to create individual ones.

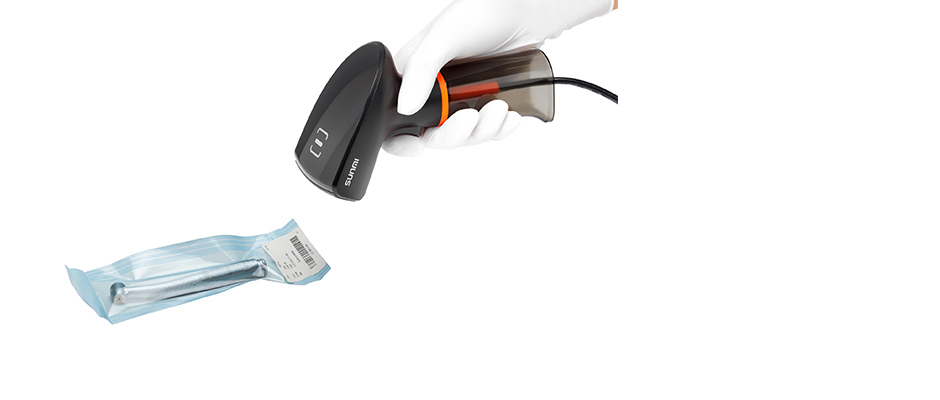

      Load identification

      Load identification

      There are three ways for load identification.

      The first way: : You pre-print a certain number of related barcode labels and place them in an organizer. When it comes to sterilizing, simply attach the related barcode label to the pouch and scan it. Now the EliTrace system knows which instruments or kits are in the pouch.

      The second way: : You print one label per instrument or kit, keeping them to have them ready at any time. During loading, you scan and then print the final label to be added to the pouch.

      The third way: : Directs you to the display, where you select the related product or kit. Then all you have to do is press the print button on the display to get the related barcode label printed.
      Retrieval

      Retrieval

      After storing the sterilized instruments in their pouches, a simple scan of the barcode labels shows you when the instruments or kits have been successfully sterilized.

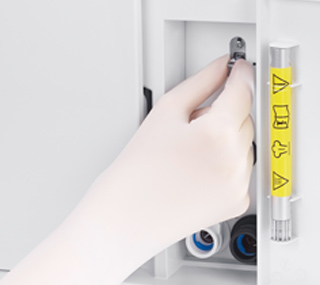

      • Complete documentation


        The documentation is automatically saved
        via a high-capacity USB stick.

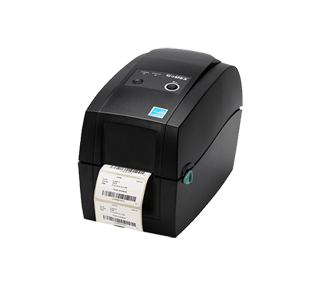

      • Linking cycle, sterilization package
        and patient

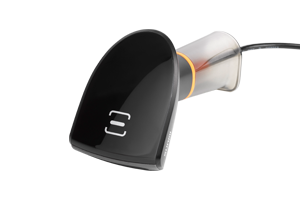

        The barcode label printer provides additional support on traceability thanks to the opportunity for linking cycle, sterilization package
        and patient.

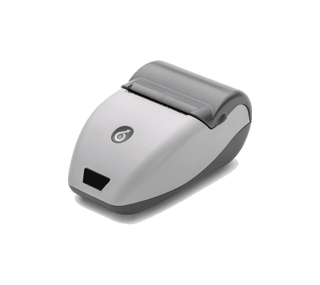

      • Adequate paper documentation

        The cycle report printer ensures adequate
        paper documentation of the cycle.

      USB stick
      LisaSafe
      Sprint

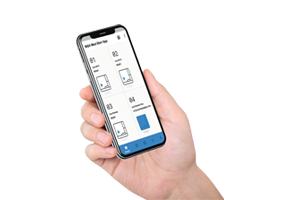

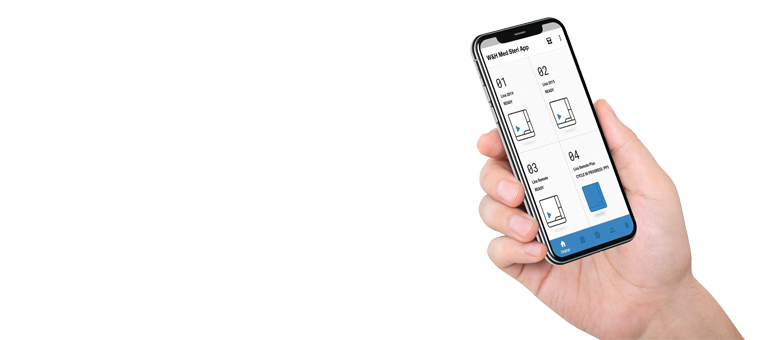

      W&H Med Steri App


      The W&H Med Steri App allows controlling and remote monitoring of the sterilizer. Moreover, cycle history back-up automatically saved on smartphone ensures extra-safety.

      Download on the App Store

      Download on Google Play Store

      Compatibility:

      The application is compatible with all sterilizers currently available.
      Available languages: EN, IT, FR, DE, ES, ZH-CN, JP

      Main features:

      Remote control of your sterilizer: the user can remotely command up to 4 sterilizers.
      Advanced traceability: EliTrace feature is now fully supported and the App permits to create instrument database directly from your smart device. In addition to this function, the management and tracking of dental instruments is integrated.
      Reports creation: the App allows making intervention reports in order to collect data regarding specific treatments.
      User management: creation and handling of sterilizer users directly from your smart device.
      Backup functionality: all the cycle reports are automatically saved to assure more protection of data.


      Lara XL sterilizer

      supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

      Lara XL RIS-311
      REF 19933111

      Chamber size 28 l


    • Lara XL sterilization cycles

      Sterilization cycle B Universal 134 B Prion 134 B Universal 121 S Naked 134
      Temperature: 134°C 134°C  121°C 134°C
      Holding time (minutes): 5' 30'' 20' 30'' 20' 30'' 5' 30''
      Total cycle duration
      (minutes) including
      complete drying:
      Automatic from
      Typical load
      Automatic from
      Typical load Automatic from Automatic from
      29‘ 30‘‘–
      64‘ 30‘‘
      42‘ 30‘‘
      44‘ 30‘‘–
      79‘ 30‘‘
      57‘ 30‘‘ 42‘–82‘ 30‘ 30‘‘–
      49‘ 30‘‘
      Load type:
      All unwrapped, bagged, single/double wrapped items:
      › Solid
      › Hollow A (narrow lumen)
      › Hollow B (simple hollow item)
      › Porous
      Unwrapped items:
      › Solid
      › Hollow A (narrow lumen)
      › Hollow B (simple hollow item)
      Max. load: Instruments: 7 kg/porous: 2,3 kg/containers: 9 kg Instruments: 7 kg
      Test cycles: Helix/Bowie and Dick/Vacuum
      Item supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

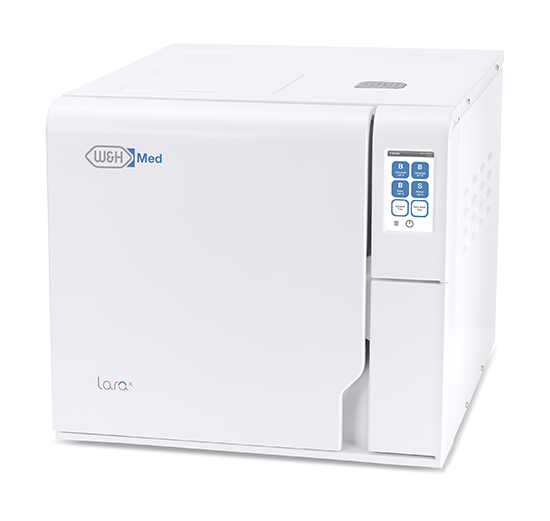

      Lara XL

      Trade name:
      Type:
      Lara XL
      RIS-311
      Chamber size: 28 l
      Power supply: 200–240 V AC; 50/60 Hz; 10 A single phase
      Power consumption: 2.0–2.4 kW
      Overall dimension
      (width × height × depth):
      492 mm × 455 mm × 614 mm
      Weight (empty): 54 kg
      Main/used water tanks: 4.8 l/5.1 l
      Working range: 5 to 10 cycles
      Usable space in chamber
      (width × height × depth)¹:
      230 × 230 × 420 mm
      Connection types: 5 USB ports, 1 Ethernet port, automatic water filling kit

      (1) Usable space is referred to standard rack configuration.

      Lara XL sterilizers were designed, certified and validated with the most stringent regulations, directives and standards:

      N°2017/745

      Medical Device Regulation

      IEC 61326-1

      Electromagnetic compatibility

      2014/68/EU

      Pressure Equipment Directive

      IEC 61010-1

      Safety requirements sterilizer

      EN 13060

      Small steam sterilizer

      IEC 61010-2-040

      Specific requirements for steam sterilizer

      EN 13060

      Electric appliances connected to the water mains

      2012/19/EU

      Waste Electrical and Electronic Equipment

      › The sterilizer can be validated according to EN ISO 17665-1
