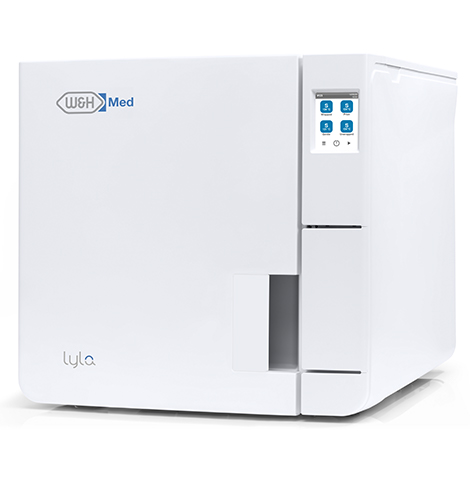

Lyla sterilizer

Secure. Sustainable. Lyla!

Significant for your needs
S type sterilizer

Sterilization is deeply important in the reprocessing workflow of your medical instruments. That is why we aim for best standards: S type sterilization is a safe and sustainable way to reprocess items, both wrapped and unwrapped. The Lyla sterilizer enormously facilitates daily activities, thanks to fast cycles, effortless interaction, reduced maintenance and additional upgrade functions to fulfil your individual needs.

  • Lyla sterilizer

    Simplified work processes

    The new Lyla sterilizer offers the best cycle time in its segment and impresses through high performance, user-friendly operation and modern design. Lyla will be a strong teammate to speed up your daily activities. Convince yourself!

    Advantages at a glance:

    • Unique upgradeability with the Activation Code system
    • Secure sterilization cycles thanks to different cycles
    • Time-saving maintenance without tools
    • Extended connectivity with W&H Med Steri App
    Faster cycle of its segment to reprocess wrapped and unwrapped items
    Ease of use
    thanks to touch screen display and user-friendly menu structure
    Extended connectivity thanks to Wi-Fi connection and Mobile App
    Upgradeable to B type thanks to the dedicated Activation Code
    Built-in USB
    data logger
    for digital cycle documentation and legal protection
    Barcode label printer (optional)
    for the extension of the documentation system by making the link »load – cycle – patient«

    Reliable and safe sterilization

    to reduce the risk
    of infection.

    • Ease of use

      Ease of use

      The simplified menu structure ensures extraordinarily high operating comfort: you can quickly navigate to programs and settings using the 3.5“ colour touch screen.

    • Cycles

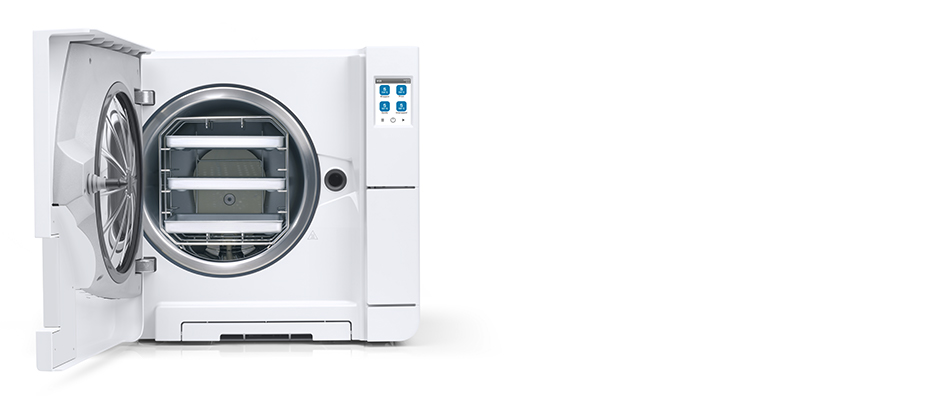

      Secure sterilization cycles

      The different available cycles guarantee the possibility to sterilize several instrument types, including hollow bodies, both wrapped and unwrapped. The 121°C cycle ensures the sterilization of sensitive items and porous load, such as surgical clothes.

    • Time-saving

      Time-saving maintenance

      The water tank cover can be easily removed without tools, thus manual water filling is simple with the integrated funnel. The smooth surface design enables easy cleaning and thanks to modular feet it fits in anywhere. Improved ergonomics and time savings, not at least because of the reliable service interval that is set to 4,000 cycles or 5 years.

    • Extended connectivity

      Extended connectivity

      The W&H Med Steri App allows controlling and remote monitoring the sterilizer thanks to a Wi-Fi connection. Moreover, cycle history back-up automatically saved on smartphone ensures extra-safety.

    • Unique upgradeability

      Unique upgradeability

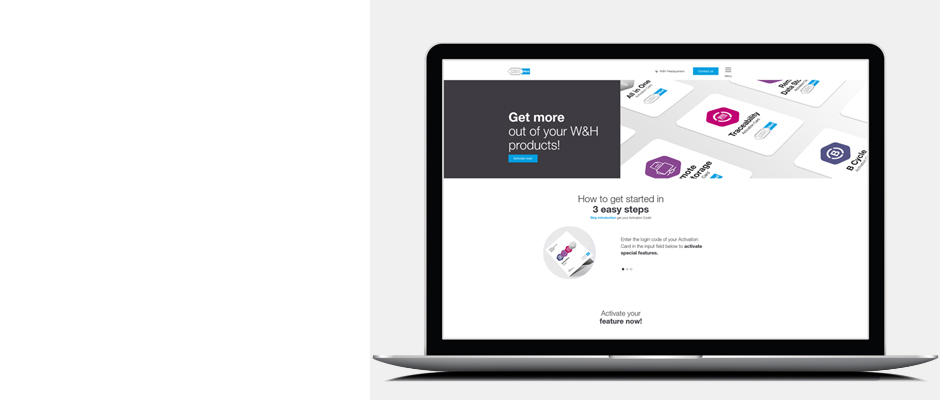

      The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enhance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lyla sterilizer.

    • Traceability system

      Label printer and barcode reader

      The label printer can be connected to the sterilizer for printing barcodes. In combination with the integrated data logger, it improves your traceability system. Thanks to the barcode reader you can scan labels into patient records – an easy tool to link cycle, sterilization package and patient.

      Unique feature upgrades

      Covering individual needs.

      Needs and requirements may change. Prepare yourself now: with the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.

      B cycle
      The “B cycle” feature upgrades Lyla to B type sterilizer according to EN 13060.
      Remote data storage
      The “Remote data storage” feature is the ideal addition for the digital cycle documentation. It offers the possibility to save cycles directly on PC.
      Traceability
      Enables user identification and load release confirmation. Identification is secured by a PIN directly on the Lyla sterilizer and the W&H Med Steri App.
      All in one
      The “All in One” feature provides all benefits in one go – and ultimately your sterilizer comes at a previously unattainable price-performance ratio.

      Discover warranty upgrade

      The Activation Code “Warranty Extension” extends the warranty of the sterilizer by 12 months.

      Six steps to your customized sterilizer:

      1. Purchase the Activation Code of your choice from your local approved dental supplier.
      2. After receiving the related login code, go to activation-med.wh.com
      3. Specify this code along with the serial number and model of your sterilizer.
      4. Your individual, secure Activation Code is generated.
      5. Enter this code in the menu of your sterilizer.
      6. The feature is available.
      ACTIVATE FEATURE NOW!
      Lyla sterilizer

      Lyla

      supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 50 Hz

      RIN-210 (220 V)
      REF 19952151

      Chamber size 22 l

      RIN-210 (110 V)
      REF 19952351

      Chamber size 22 l

      Request Price
      Lyla sterilizer

      Lyla

      supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 60 Hz

      RIN 210 (220 V)
      REF 19952251

      Camber size 22 l

      RIN 210 (110 V)
      REF 19952351

      Camber size 22 l

      Request Price

      Download Area

      Downloads

      Instructions for use

      Lyla Instructions for Use
      Maintenance Sheet
      Lyla RIN-210 2020

      Videos & Tutorials

      Service

    • Lyla sterilization programs

      Sterilization cycle: S Wrapped 134 S Prion 134 S Gentle 121 S Unwrapped 134
      Temperature: 134 °C 134 °C  121 °C 134 °C
      Holding time (minutes): 5' 30'' 20' 30'' 20' 30'' 4'
      Total cycle duration
      (minutes) including
      complete drying:       		Automatic from Typical
      load       		Automatic from Typical
      load       		Automatic from Automatic from
      Lyla (220 V)
      40’–47’
      		44'
      52’–62’
      		59‘ 62’–66’ 21’–27’
      Lyla (110 V)
      50'–57'
      		52'
      65'–72'
      		67' 69'–73'
      		 28'–35'
      Max. Load:
      maximum 4 kg/typical 2 kg/maximum porous 0.5 kg
      max. 4 kg unwrapped
      Max. container load:
      maximum 4 kg
      Not applicable
      Test cycles: Bowie and Dick/Vacuum

      Items supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

      Lyla 22

      Series:

      Lyla

      Type:

      RIN-210

      Chamber size:

      22 l

      Power supply:

      200–240 V AC; 50 Hz or 60 Hz; 10 A single phase
      100–125 V AC; 50 Hz/60 Hz; 12 A single phase

      Power consumption:

      220 V: 2.0–2.4 kW
      110 V: 1.2–1.5 kW

      Overall dimension
      (w × h × d):

      465 × 452 × 646 mm

      Weight (empty):

      42 kg

      Main/used water tanks:

      4.8/4.8 l

      Working range:

      7 to 10 cycles

      Usable space in chamber (w × h × d)¹:

      195 × 195 × 400 mm

      Connection types:

      1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)

      (1) Usable space is referred to standard rack configuration.

      Lyla sterilizers were designed, certified and validated with the most stringent directives and standards:

      N°2017/745

      Medical Device Regulation

      IEC 61326-1

      Electromagnetic compatibility

      2014/68/EU

      Pressure equipment Directive

      IEC 61010-1

      Safety requirements sterilizer

      EN 13060

      Small steam sterilizer

      IEC 61010-2-040

      Specific requirements for steam sterilizer

      IEC 61770

      Electric appliances connected to the water mains

      The sterilizer can be validated according to EN ISO 17665-1
