Amadeo

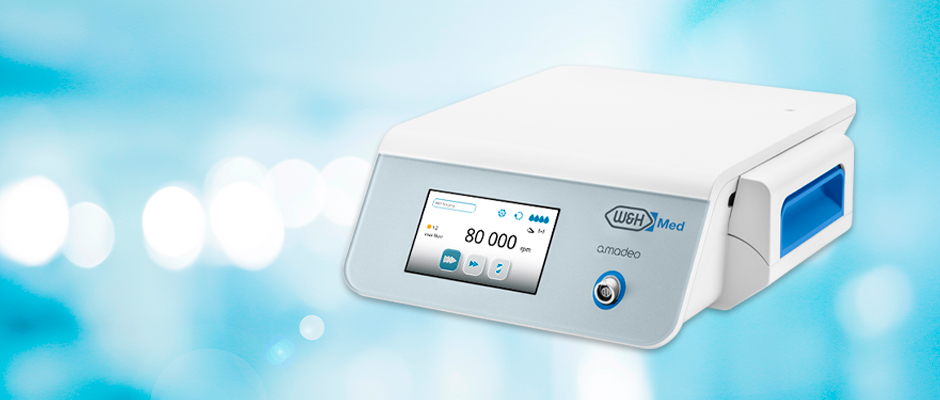

Amadeo shows its versatility

In ‘Amadeo’, surgeons have a high-quality and powerful surgical system for use in ear, nose and throat, craniomaxillofacial, thoracic and spine surgery, as well as special orthopaedic surgery.

  • Amadeo

    Composition of the highest calibre

    Amadeo’s impressive and versatile user interface helps turn your surgical intervention into a masterpiece: after all, in addition to the expert knowledge of the surgeon, having a reliable and powerful drive unit is also key to the success of a surgical procedure.

    Overview:

    • Intuitive and effortless operation
    • Focus on the essentials
    • Safe and quick insertion of coolant hose
    • Wireless foot control
    • Intuitive and effortless operation

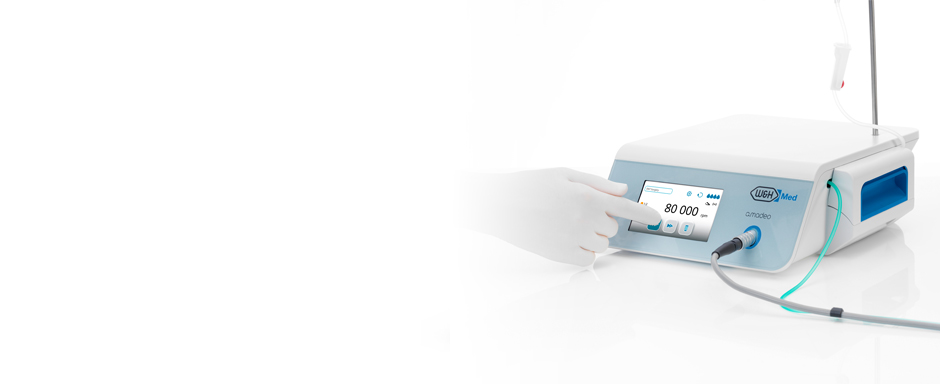

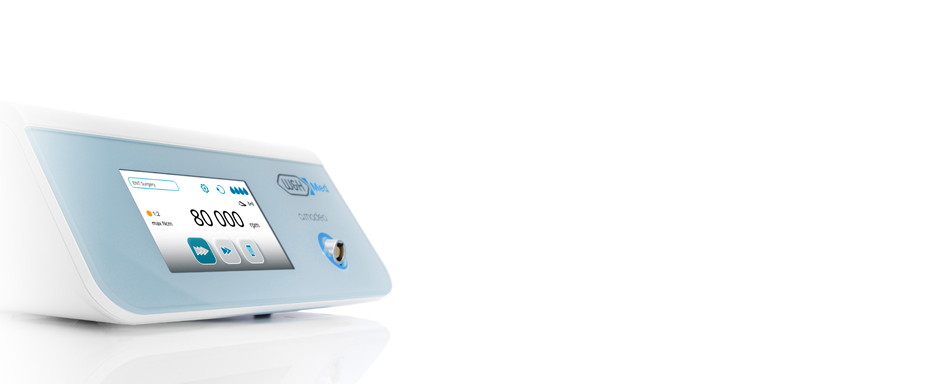

      Colour touch screen with user-friendly
      menu navigation and pre-set programs
      for structured surgical procedures.

    • Focus on the essentials

      During treatment, only the central
      functions are shown on the display.

    • For surgical operation assistants

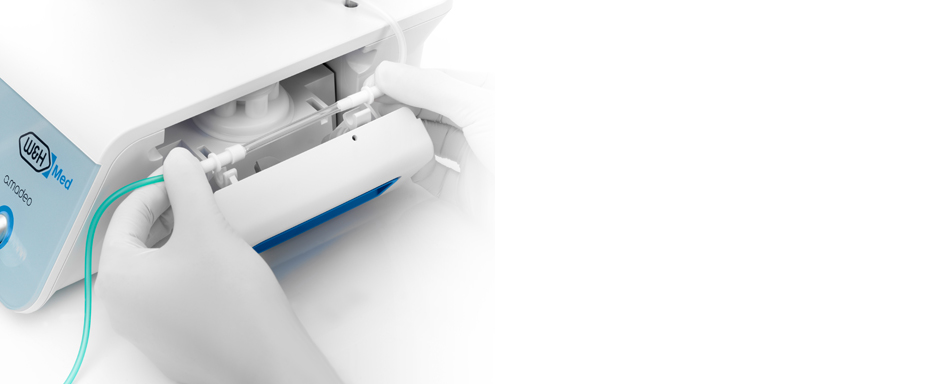

      The newly designed pump
      enables the coolant hose
      to be inserted safely and
      quickly.

    • More freedom of movement

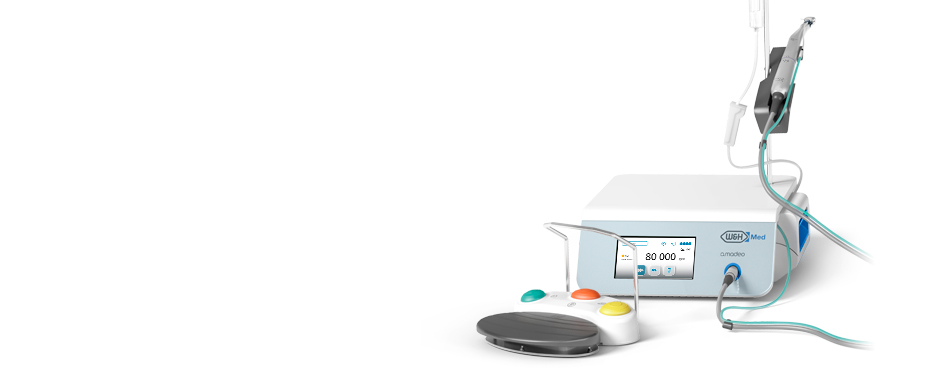

      The wireless foot control allows
      you to choose the optimal location
      in your working area.

      Amadeo gives me full support in my clinical treatment pathway.
      • Ear, nose and throat

        Ear, nose and throat

        ENT surgery is a varied surgical field. Amadeo's product features include a specially designed program sequence for inserting bone conduction hearing implants.

      • Craniomaxillofacial

        Oral and maxillofacial

        Amadeo and W&H's innovative technology guarantee precise speed and torque regulation as well as continuous cooling for the full spectrum of craniomaxillofacial procedures.

      • Thoracic

        Thoracic

        Thanks to its high torque, Amadeo enables plate systems to be attached trouble-free in thoracic surgery.

      • Spine

        Spine

        Amadeo reaches speeds of up to 80,000 rpm while simultaneously supplying coolant locally, thereby enabling effective removal of bone structures with minimal risk of heat necrosis.

      • Orthopaedics

        Orthopaedics

        Amadeo assists you in orthopaedic small bone surgery for procedures to reconstruct and stabilize bones and correct misalignments.

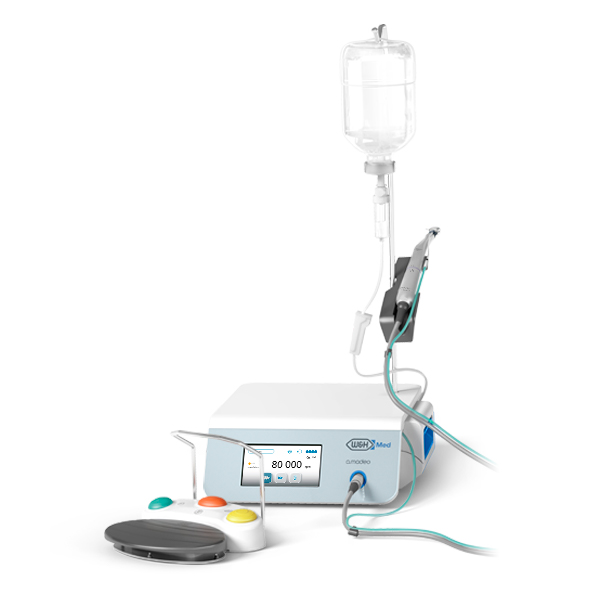

        Amadeo

        consists of

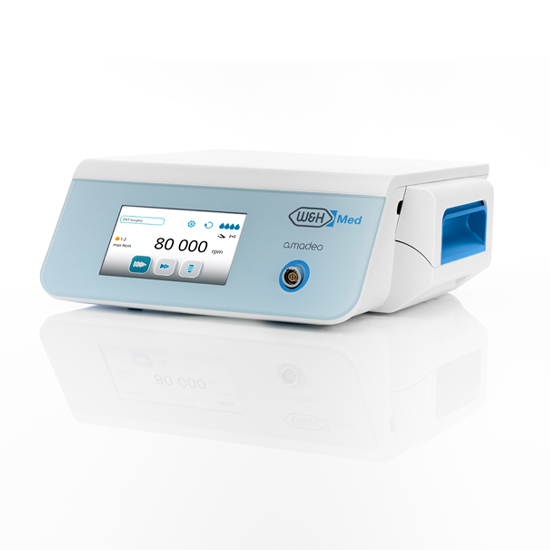

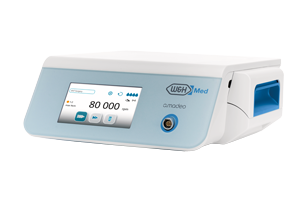

        > Control unit
        > Irrigant support
        > Mains cable
        > 3 disposable irrigations tubings

        Amadeo M-UK1023
        REF 30387000

        Control unit 230 V mains voltage

        Amadeo M-UK1015
        REF 30388000

        Control unit 120 V mains voltage

        Amadeo M-UK1010
        REF 30389000

        Control unit 100 V mains voltage

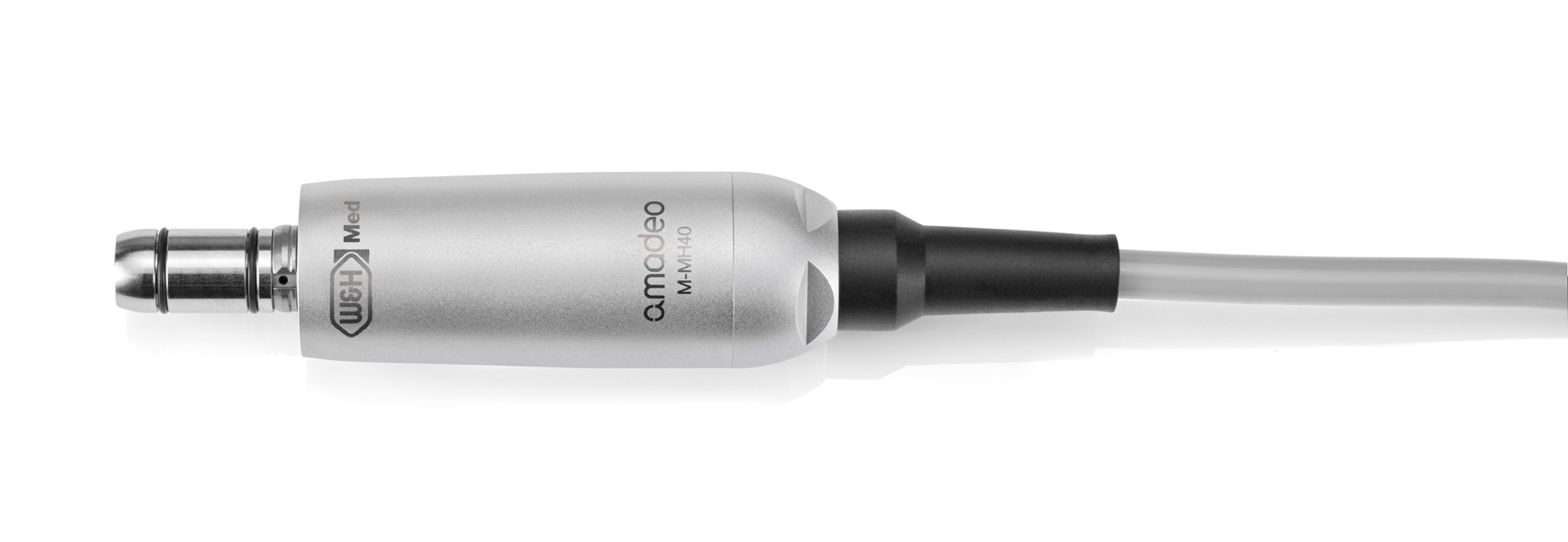

        Electric motor with W&H connection

        Maximum torque at motor: 6.2 Ncm
        Motor speed range in the rated voltage range:
        200 – 40.000 rpm

        M-MH40
        REF 30393000

        with 3.5 m cable
        without LED+
        without electric contacts

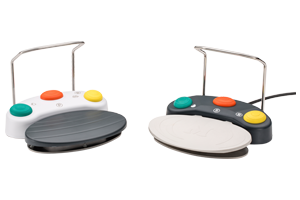

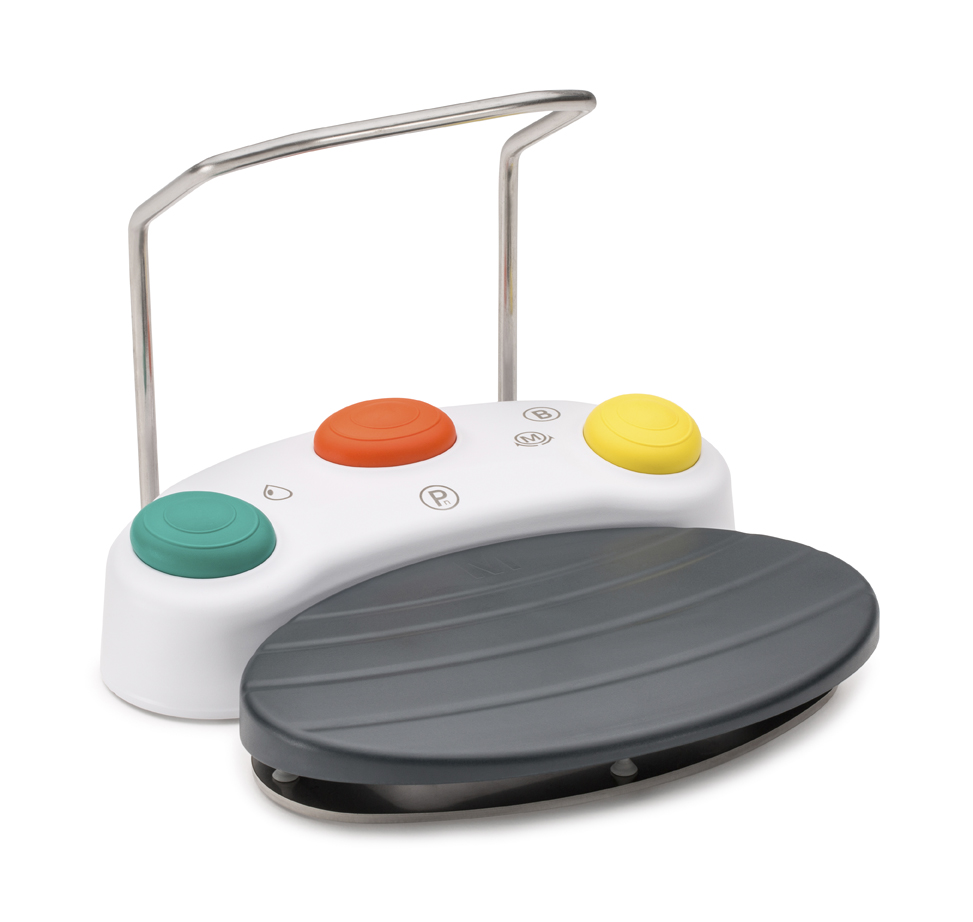

        Wireless foot control


        S-NW + CAN
        REF 30264000

        with CAN dongle

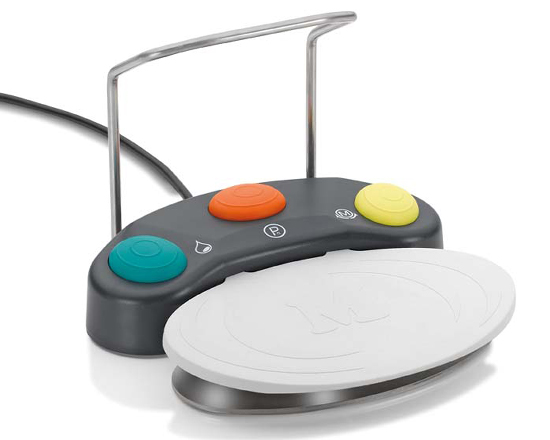

        Foot control with cable

        S-N2
        REF 30285000


      • Amadeo

        Type: Amadeo M-UK1023/1015/1010
        Mains voltage: 230 V 120 V 100 V
        Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A
        Frequency: 50 / 60 Hz
        Mains fuse (2 pcs): 250 V – T1,6AH
        Maximum power consumption: 170 VA/170 VA/140 VA
        Maximum power output: 80 W
        Max. torque at the motor: 6.2 Ncm
        Motor speed range in the nominal voltage range: 200 – 40,000 min -1
        Coolant flow rate at 100 %: at least 90 ml/min
        Dimensions in mm (w x h x d): 100 x 262 x 291 mm
        Weight in kg: 3.5
        Foot control: S-N2 / S-NW

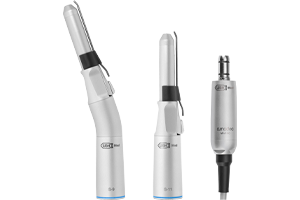

        Straight and contra-angle handpieces: S-9/S-10/S-11/S-12/S-15/WS-75/WS-75 LG
        Warranty: 24 months
        Warranty straight and contra-angle handpieces: 12 months
        Class: Class II medical electrical equipment


        Class II medical electrical equipment

        93/42/ECC Medical Device Directive
        IEC 60601-1 Safety requirements
        IEC 60601-1-2 Electromagnetic compatibility
