Providing the best treatment
Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required.

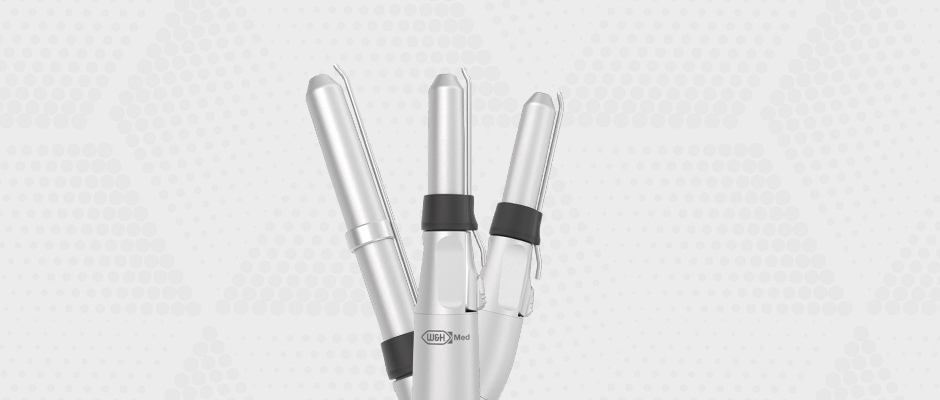

Therefore W&H has developed a series of straight and angled handpieces for use in ear, nose and throat, oral and craniomaxillofacial, thoracic and spine surgery.The main features at a glance
- Fatigue-free working thanks to optimal ergonomics
- Wide range for all surgical applications
- Can be dismantled for thorough cleaning
- Thermo washer disinfectable and sterilizable

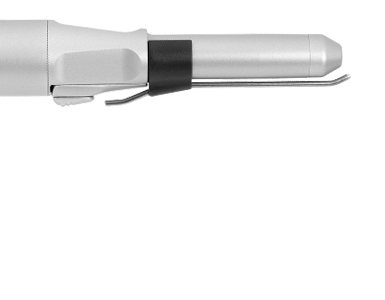

Fatigue-free working thanks to optimal ergonomicsFatigue-free operation
The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
Scratch-resistant surfaceScratch-resistant surface
The unique coating protects the handpiece from scratches.
This facilitates cleaning and preserves the value.

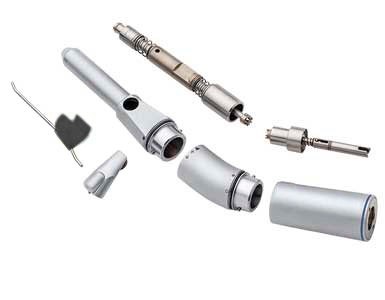

Can be dismantled without toolsEasy cleaning – Can be dismantled without tools
To enable thorough cleaning to be carried out, the handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.
Cleaning parts individually provides the most effective result.
![Surgical Handpiece S-9]( "Surgical Handpiece S-9")
![Surgical Handpiece S-9]( "Surgical Handpiece S-9")
![Surgical Handpiece S-9]( "Surgical Handpiece S-9")

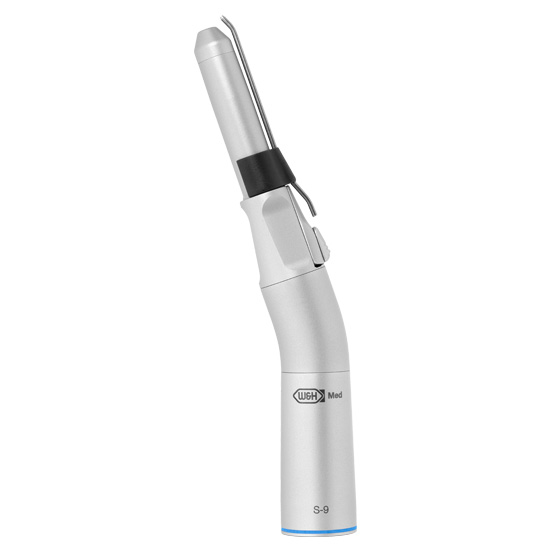

S-9
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-9
REF 300530021:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1![Surgical Handpiece S-10]( "Surgical Handpiece S-10")
![Surgical Handpiece S-10]( "Surgical Handpiece S-10")
![Surgical Handpiece S-10]( "Surgical Handpiece S-10")

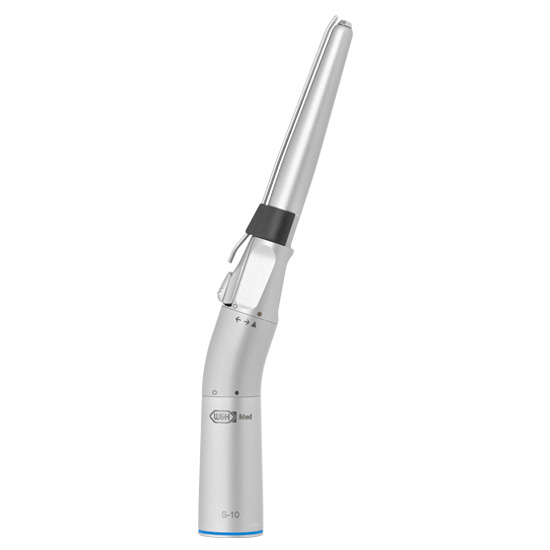

S-10
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-10
REF 300590011:1, angled, can be dismantled, for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray, maximum drive speed 50,000 min-1![Surgical Handpiece S-11]( "Surgical Handpiece S-11")
![Surgical Handpiece S-11]( "Surgical Handpiece S-11")
![Surgical Handpiece S-11]( "Surgical Handpiece S-11")

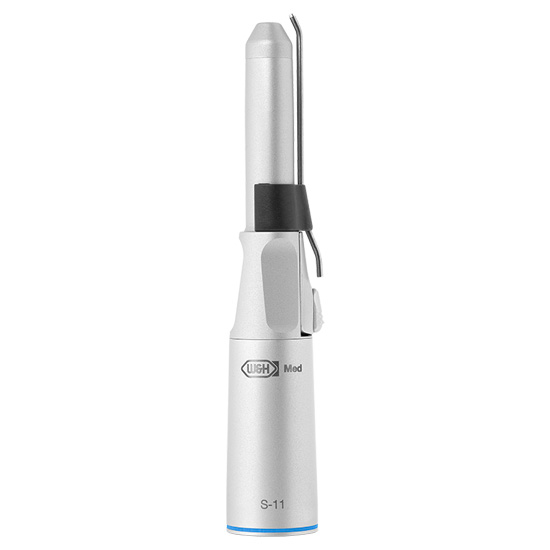

S-11
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-11
REF 300560021:1, straight, can be dismantled, for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm,
external spray, maximum drive speed 50,000 min-1![Surgical Handpiece S-12]( "Surgical Handpiece S-12")
![Surgical Handpiece S-12]( "Surgical Handpiece S-12")
![Surgical Handpiece S-12]( "Surgical Handpiece S-12")

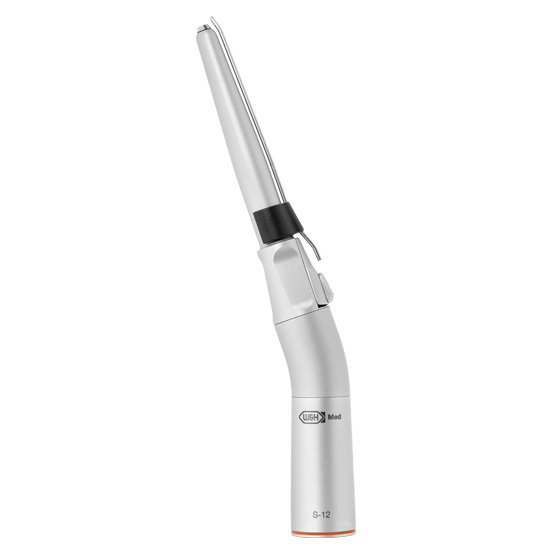

S-12
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-12
REF 300610011:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm,
L = 70 mm, external spray, maximum drive speed 40,000 min-1![Surgical Handpiece S-15]( "Surgical Handpiece S-15")
![Surgical Handpiece S-15]( "Surgical Handpiece S-15")
![Surgical Handpiece S-15]( "Surgical Handpiece S-15")

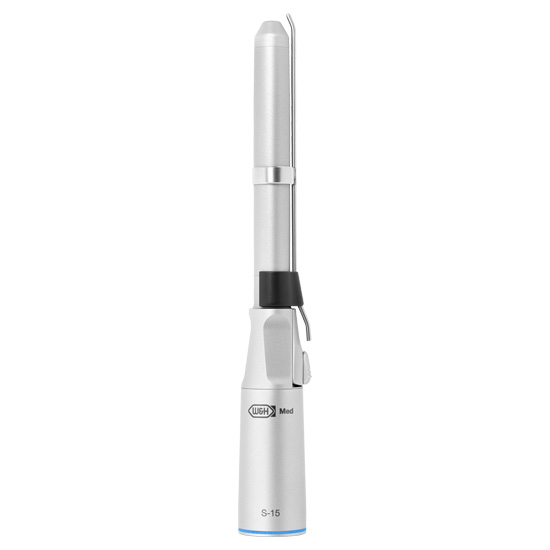

S-15
Surgical Handpiece
with lever chuck
Coupling system: ISO 3964 (DIN 13940)S-15
REF 300600011:1, straight, can be dismantled,
for surgical burs and cutters Ø 2.35 mm
(also Stryker system), L = 45 mm,
external spray, maximum drive speed 30,000 min-1Download Area
Videos & Tutorials
Instructions for use
-
Surgical handpieces
Type: S-9 S-11 S-15 S-10 S-12 Transmission ratio: 1:1 1:1 1:1 1:1 1:2 Coupling system: ISO 3964 Spray: external Chucking system: lever chuck Rotary instruments: for surgical burs and cutters
Ø 2.35 mm (also Stryker system)for surgical burs and cutters
Ø 2.35 mmPermitted bur length: 45 mm 70 mm Maximum drive speed: 50,000 min ⁻¹ 50,000 min ⁻¹ 30,000 min ⁻¹ 50,000 min ⁻¹ 40,000 min ⁻¹ Can be dismantled: yes yes
