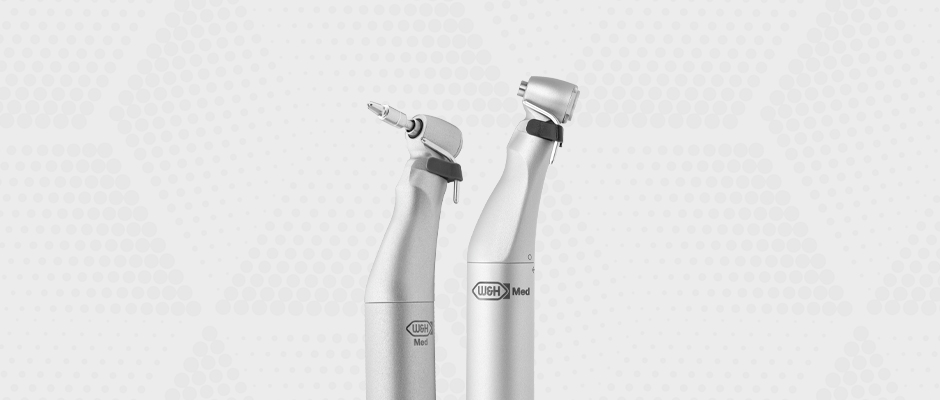

Surgical Contra-angles

For the highest surgical requirements

Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required. W&H contra-angle handpieces made from high-quality stainless steel with special coating are particularly robust.

  • Surgical contra-angle handpieces with mini LED+ and generator

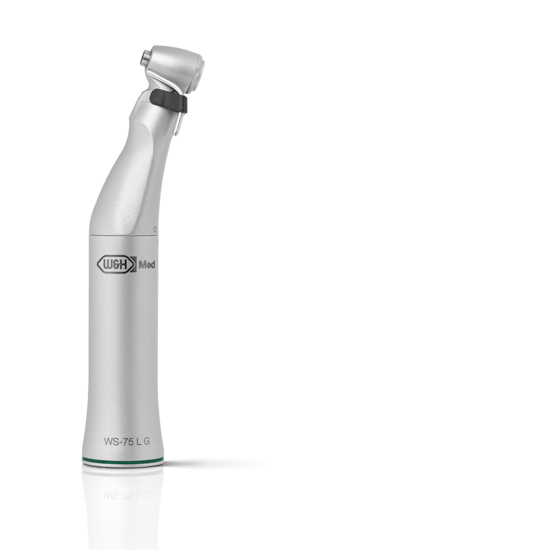

    Surgical Contra-angle handpiece WS-75 L G

    Work with daylight quality

    As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini LED+, which offers outstanding illumination with high-contrast, natural light.

    The main features at a glance

    • Natural reproduction of red tones
    • Independent power supply with integrated generator
    • Longer life compared to conventional halogen bulbs
    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable

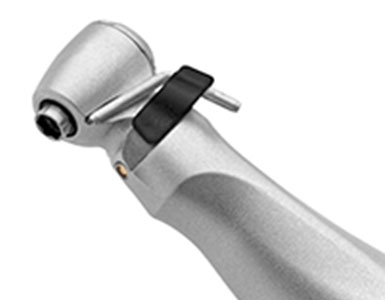

    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free operation

    The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.

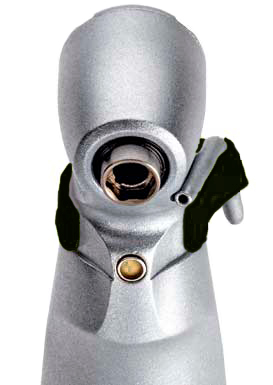

    Perfect light due to mini LED+

    Optimal illumination

    Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the contra-angle head and offers optimal illumination. With its neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area regardless of whether you have an optic or non-optic drive system.

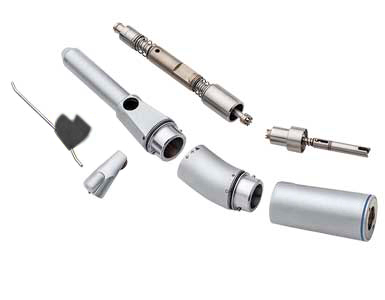

    Can be dismantled without tools

    Perfect cleaning – Can be dismantled without tools

    To enable thorough cleaning to be carried out, the contra-angle handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.

    Cleaning parts individually provides the most effective result.
    Scratch-resistant surface

    Scratch-resistant surface

    The unique coating protects the contra-angle handpieces from scratches. This facilitates cleaning and preserves the value.

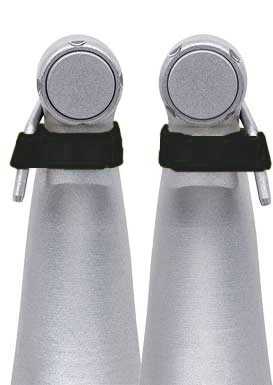

    Variable cooling

    Variable cooling

    There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements.

    WS-75 L G

    Surgical contra-angle handpiece with push-button, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    WS-75 L G
    REF 30032003

    20:1, can be dismantled, single spray,
    with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, (shank hardness >50 HRC, >520 HV),
    Kirschner/Meyer internal bur cooling system, maximum drive speed 40,000 min-1





    Surgical contra-angle handpieces without light

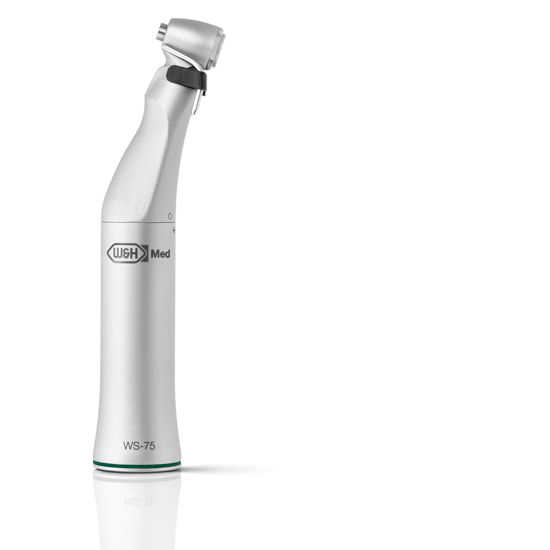

    Surgical Contra-angle handpiece WS-75

    Providing the best treatment

    The high standards required for the achievement of optimum surgical results are met by the W&H range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.

    The main features at a glance

    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Fatigue-free working thanks to optimal ergonomics
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable

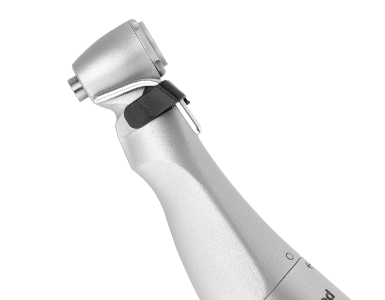

    Fatigue-free working thanks to optimal ergonomics

    Fatigue-free working

    The ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
    Scratch-resistant surface

    Scratch-resistant surface

    The unique coating protects the contra-angle handpieces from scratches. This facilitates cleaning and preserves the value.
    Can be dismantled without tools

    Perfect cleaning – Can be dismantled without tools

    To enable thorough cleaning to be carried out, the contra-angle handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.

    Cleaning parts individually provides the most effective result.
    Variable cooling

    Variable cooling

    There are spray clips available for the left and right. This means that cooling can be adapted to the individual requirements

    WS-75

    Surgical contra-angle handpiece
    with push-button
    Coupling system: ISO 3964 (DIN 13940)

    WS-75
    REF 30065002

    20:1, can be dismantled, single spray,
    with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, (shank hardness >50 HRC, >520 HV), Kirschner/Meyer internal bur cooling system, maximum drive speed 50,000 min-1



  • Surgical contra-angle handpieces with mini LED+ and generator

    Type: WS-75 L G
    Transmission ratio: 20:1
    Coupling system: ISO 3964
    Lighting system: mini LED+
    Power supply: via independent generator
    Light quality: daylight
    External spray: single
    Internal bur cooling system: Kirschner/Meyer
    Chucking system: push-button chuck
    Rotary instruments: for surgical burs and cutters
    with contra-angled shank Ø 2.35 mm
    Maximum drive speed: 40,000 min ⁻¹
    Can be dismantled: yes


    Surgical contra-angle handpieces without light

    Type: WS-75
    Transmission ratio: 20:1
    Coupling system: ISO 3964
    External spray: single
    Internal bur cooling system: Kirschner/Meyer
    Chucking system: push-button chuck
    Rotary instruments: for surgical burs and cutters
    with contra-angled shank Ø 2.35 mm
    Maximum drive speed: 50,000 min ⁻¹
    Can be dismantled: yes
