Our tip sets* at a glance
Rhino Basic (REF 90000410)
- Instrument kit for the open rhinoplasty approach MP1, MR1, MS2, MS3R, MS3L, MS5
Rhino Advanced (REF 90000411)
- Instrument kit for the closed rhinoplasty approach MR2, MR6, MS1K, MS2G, MS7, MS12
CMF (REF 90000412)
- Instrument kit for craniomaxillofacial surgical interventions MS1, MS4R, MS4L, MS6, MS8, MS9
* Only available with reusable tips.

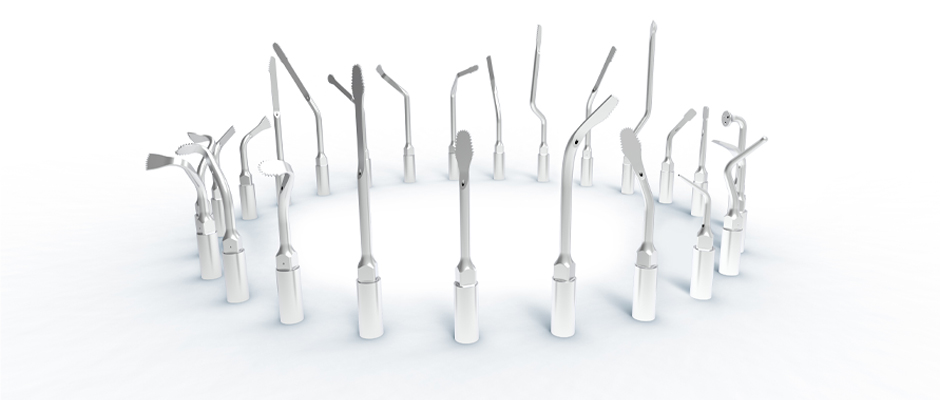

Instruments for Piezo Technology
Multi-use and sterile Single-Use (-S) availableMP1 (REF 30502000)
MP1-S (REF 30503000)
- Diamond-coated short piezo tip for applying perforations in the area of the dorsum or septum.
- Total length 35 mm
- Length of the working part 6 mm
MR1 (REF 30502001)
MR1-S (REF 30503001)
- Piezo rasp with diamond coating for removing the dorsal hump.
- Total length 35 mm
- Length of the working part 4.2 mm
MR2 (REF 30502002)
MR2-S (REF 30503002)
- Diamond-coated, straight piezo rasp for removing and grinding bone/cartilage on the dorsum.
- Total length 38 mm
- Length of the working part 4.2 mm
MR3 (REF 30502003)
MR3-S (REF 30503003)
- Rasp for removing and grinding bone/cartilage on the dorsum.
- Total length 40 mm
- Length of the working part 4.9 mm
MR4 (REF 30502004)
MR4-S (REF 30503004)
- Piezo scraper for removing and grinding bone/cartilage on the dorsum.
- Total length 33 mm
MR5 (REF 30502005)
MR5-S (REF 30503005)
- Instrument with diamond-coated ball for fine preparation of bones.
- Total length 36 mm
- ø 2 mm
MR6 (REF 30502006)
MR6-S (REF 30503006)
- Long, angled piezo instrument for tunnelling and removing the periosteum from the lateral nasal bone.
- Total length 68 mm
- Length of the working part 9 mm
MS1 (REF 30502007)
MS1-S (REF 30503007)
- Universal, thin piezo saw for a wide variety of bone procedures.
- Total length 42 mm
- Length of the working part 14 mm
MS1K (REF 30502008)
MS1K-S (REF 30503008)
- Long, specially curved, one‑sided piezo saw, e.g. for subdorsal septum resection.
- Total length 42 mm
- Length of the working part 14 mm
- Design by Dr Milos Kovacevic
MS2 (REF 30502009)
MS2-S (REF 30503009)
- Universal straight piezo saw for all types of bone processing, e.g. radix osteotomy.
- Total length 52 mm
- Length of the working part 9 mm
MS2G (REF 30502010)
MS2G-S (REF 30503010)
- Long, straight piezo saw with dual coolant outlets for general osteotomies in the nasal bone, especially the radix osteotomy.
- Total length 55 mm
- Length of the working part 24 mm
- Design by Dr Abdülkadir Göksel
MS3L (REF 30502012)
MS3L-S (REF 30503012)
- Piezo saw for lateral osteotomy with minimal bone loss.
- Total length 37 mm
- Length of the working part 4 mm
MS3R (REF 30502011)
MS3R-S (REF 30503011)
- Piezo saw for lateral osteotomy with minimal bone loss.
- Total length 37 mm
- Length of the working part 4 mm
MS4L (REF 30502014)
MS4L-S (REF 30503014)
- Piezo saw for horizontal saw cutting with minimal bone loss in hard-to-access areas.
- Total length 34 mm
- Length of the working part 4 mm
MS4R (REF 30502013)
MS4R-S (REF 30503013)
- Piezo saw for horizontal saw cutting with minimal bone loss in hard-to-access areas.
- Total length 34 mm
- Length of the working part 4 mm
MS5 (REF 30502015)
MS5-S (REF 30503015)
- Universal, short and narrow piezo saw for general bone processing.
- Total length 33 mm
- Length of the working part 16 mm
MS6 (REF 30502016)
MS6-S (REF 30503016)
- Universal, short piezo saw for general bone processing.
- Total length 35 mm
- Length of the working part 12 mm
MS7 (REF 30502017)
MS7-S (REF 30503017)
- Long, straight, one-sided piezo saw with dual coolant outlets for lateral osteotomy.
- Total length 55 mm
- Length of the working part 24 mm
- Design by Dr Philipp Mayr
MS8 (REF 30502018)
MS8-S (REF 30503018)
- Long, thin, angled piezo saw for deep osteotomies in the jaw area.
- Total length 59 mm
- Length of the working part 30 mm
MS9 (REF 30502019)
MS9-S (REF 30503019)
- Long, thin, angled piezo saw for deep osteotomies in the jaw area.
- Total length 47 mm
- Length of the working part 19 mm
MS10R (REF 30502020)
MS10R-S (REF 30503020)
- Long, angled piezo saw for hard-to-access areas, especially in the jaw area.
- Total length 58 mm
- Length of the working part 7 mm
MS10L (REF 30502021)
MS10L-S (REF 30503021)
- Long, angled piezo saw for hard-to-access areas, especially in the jaw area.
- Total length 58 mm
- Length of the working part 7 mm
MS11 (REF 30502022)
MS11-S (REF 30503022)
- Long, one-sided, angled piezo saw for various types of bone processing, e.g. on the septum.
- Total length 55 mm
- Length of the working part 20 mm
MS12 (REF 30502023)
MS12-S (REF 30503023)
- Long, one-sided piezo saw with double bend and dual coolant outlets for all kinds of work on the septum/septum base.
- Total length 67 mm
- Length of the working part 13 mm
MS14 (REF 30502024)
MS14-S (REF 30503024)
- Long piezo-saw, angled for septum osteotomy.
- Total length 58 mm
- Length of the working part 30 mm
Dual coolant outlets
- Precise cooling at critical points reduces the risk of overheating while protecting bone and soft tissue.
Orientation help
- The solid line shows the smooth side, the dashed line the saw side. This is an ideal orientation help when using the instrument without a direct view.
