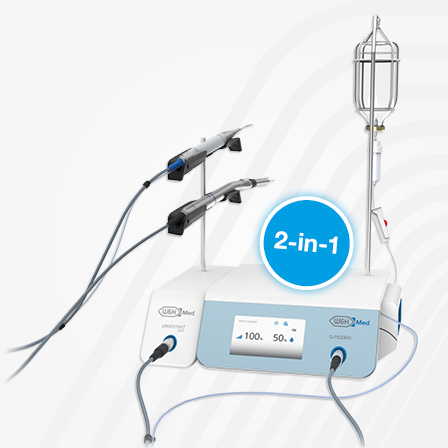

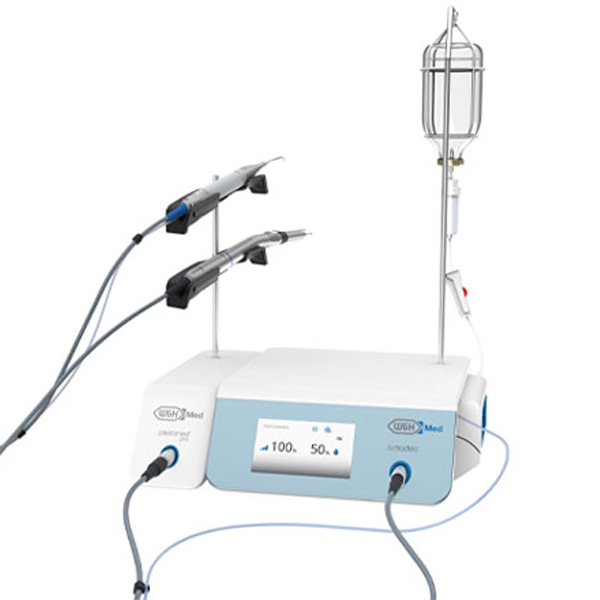

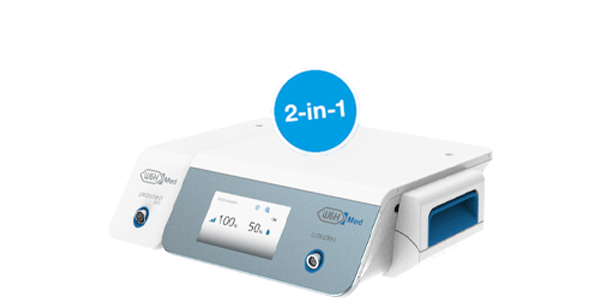

Modularity for optimum flexibility
The W&H Med Console, consisting of Piezomed Pro and Amadeo, offers optimum flexibility for a wide variety of treatments. The unique 2-in-1 solution combines innovative piezo technology with a powerful surgical motor. What a huge for relief for the patient: less swelling, better healing!
Overview:
- Safe treatment
- Accelerated healing process
- Efficient cooling
- Foot control – maximum freedom of movement
- Colour touch screen
- Safe and quick insertion of coolant hose
The W&H Med Console, consisting of Piezomed Pro and Amadeo, offers optimum flexibility for a wide variety of treatments.

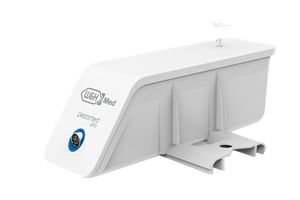

Piezomed Pro
The Piezomed Pro module with its piezo technology is the perfect complement to the powerful Amadeo surgical motor.

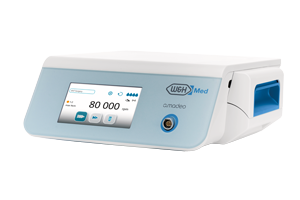

Amadeo
In „Amadeo“, surgeons have a high-quality and powerful surgical system for use in ear, nose and throat, craniomaxillofacial, thoracic and spine surgery, as well as special orthopaedic surgery.

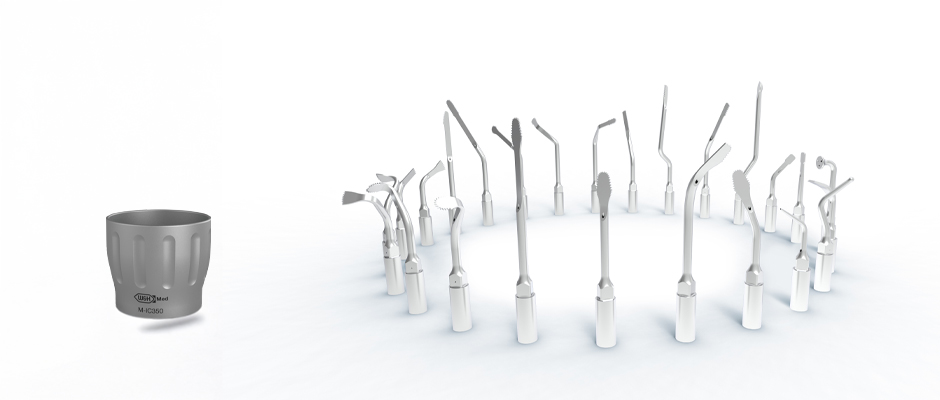

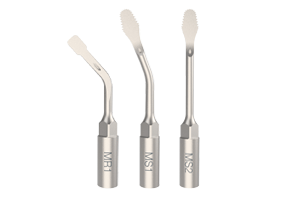

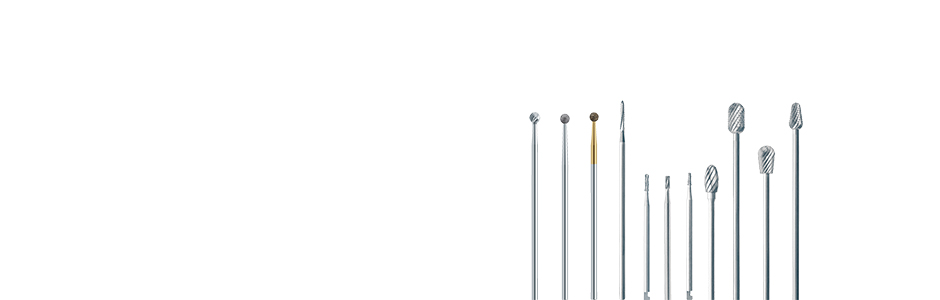

Special tips for individual treatments
The tailor-made tip portfolio offers individualised treatment and unrivalled precision, ensuring safe and efficient surgical procedures with optimum results. Developed in close cooperation with experts, the tip range offers practical solutions – perfect for the requirements of everyday medical practice.

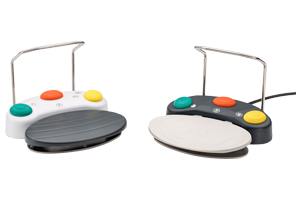

Foot control – maximum freedom of movement
Flexible use of both devices with a single wireless foot control and long range ensure complete freedom of movement during surgery.

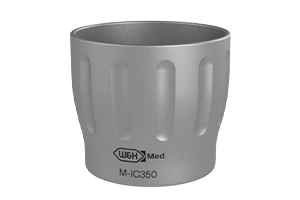

Instrument changer
Durable and robust: The high-quality torque wrench enables quick and easy instrument changing at the appropriate torque.

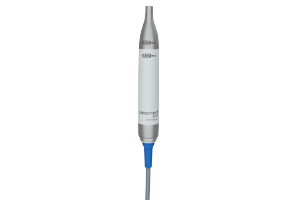

Handpiece
The ergonomic Piezomed Pro handpiece offers easy access and effective cooling.

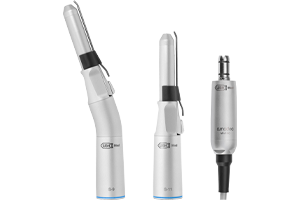

Straight & Contra-angle Handpieces
Experience fatigue-free working with our straight and contra-angled handpieces, designed for optimal ergonomics. Combined with a powerful, compact, and lightweight electric motor, they deliver exceptionally low vibration levels, ensuring smooth and comfortable workflows.
![W&H Med Console]( "W&H Med Console")
![W&H Med Console]( "W&H Med Console")
![W&H Med Console]( "W&H Med Console")
W&H Med Console
consisting of
> Amadeo M-UK1023
> Piezomed Pro module M-PM100
> Piezomed Pro handpiece M-PH350
> Instrument changer M-IC350
> Wired / wireless foot control
> Disposable spray hose set 3.8mDownload Area
Downloads
Instructions for use
-
Piezomed Pro
Type: Piezomed Pro control unit M-PM100 Supply voltage: 100 – 240 V Operating voltage: 30 – 32 V DC Frequency: 50 – 60 Hz Maximum output (ultrasonic): 24 W Operating frequency: 22 – 35 kHz Coolant flow rate at 100%: minimum 90 ml/min Operating mode: S3 (60 s ON / 30 s OFF) Dimensions in mm (W × H × D): 140 x 90 x 285 Weight: 635 g Length of handpiece cable: 3,5 m Foot control: S-N2/S-NW
Amadeo
Type: Amadeo M-UK1023/1015/1010 Mains voltage: 230 V 120 V 100 V Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A Frequency: 50 / 60 Hz Mains fuse (2 pcs): 250 V – T1,6AH Maximum power consumption: 170 VA/170 VA/140 VA Maximum power output: 80 W Max. torque at the motor: 6.2 Ncm Motor speed range in the nominal voltage range: 200 – 40,000 min -1 Coolant flow rate at 100 %: at least 90 ml/min Dimensions in mm (w x h x d): 100 x 262 x 291 mm Weight in kg: 3.5 Foot control: S-N2 / S-NW Straight and contra-angle handpieces: S-9/S-10/S-11/S-12/S-15/WS-75/WS-75 LG Warranty: 24 months Warranty straight and contra-angle handpieces: 12 months Class: Class II medical electrical equipment
Typ: Handpiece with cable M-PH350 Maximum power consumption: 24 W Frequency (ultrasonic): 22 – 35 kHz Frequency: 50 – 60 Hz Coolant flow rate at 100%: minimum 90 ml/min Operating mode: S3 (60 s ON / 30 s OFF) Class II medical electrical equipment
93/42/ECC Medical Device Directive IEC 60601-1 Safety requirements IEC 60601-1-2 Electromagnetic compatibility
