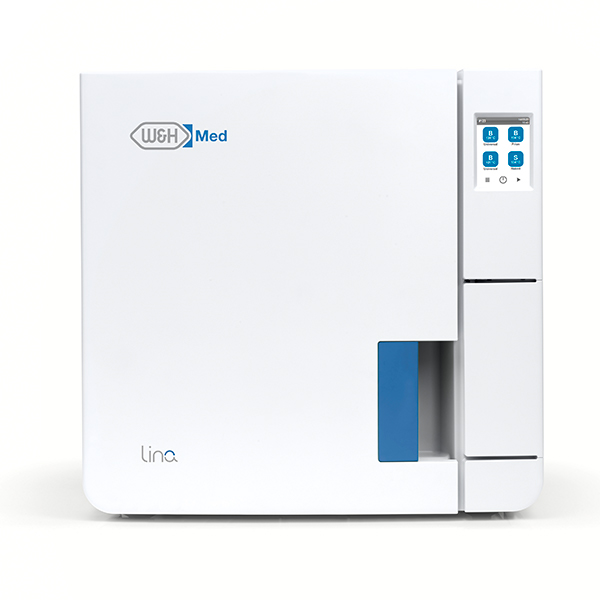

![New Lina]( "New Lina")
Interrupting

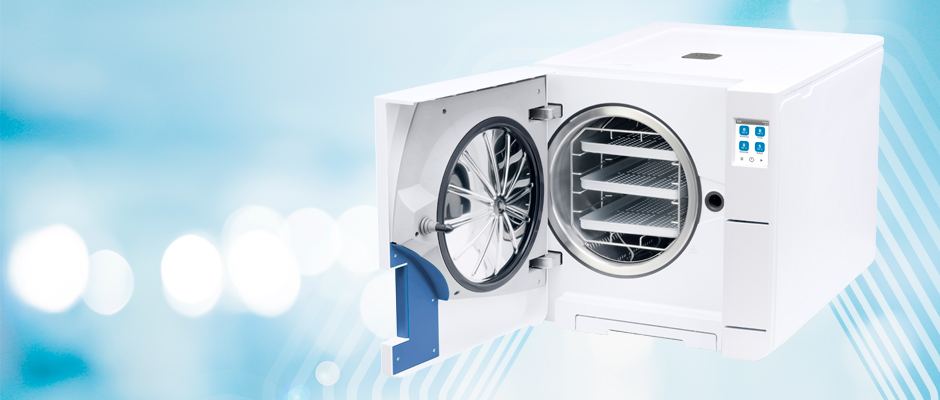

the chain of infection.B type sterilizer – for peace of mind on reprocessing and infection prevention.
Benefits at a glance:
- B type sterilizer with the best cycle times of its category.
- Ease of use for an unrivalled smooth user experience.
- Unique upgradeability for customising and modernising the device according to your needs.
- Advanced traceability for complete documentation.
Ease of useEase of use

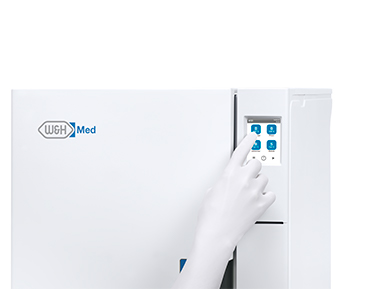

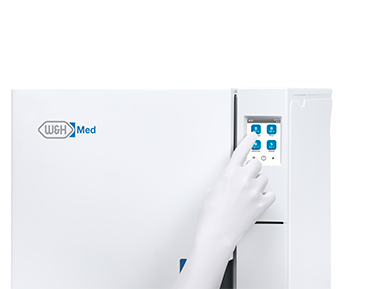

› The 3.5’’ touch screen display
enables smooth operation.
› The simplified user interface and menu structure support practices in all daily activities.

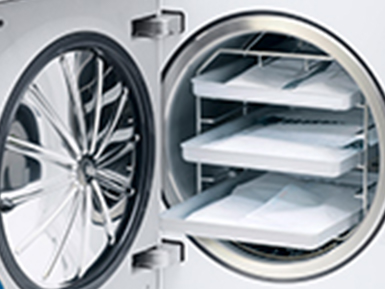

Optimal sterilization programsOptimal sterilization programs

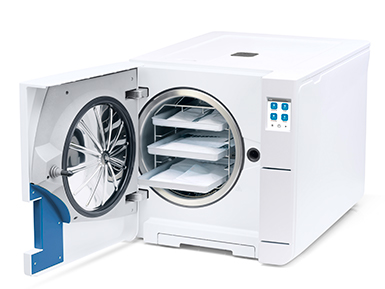

› The Eco B sterilization program reprocesses 0.5 kg in 30 minutes.
› Lina S cycle is specific for all types of unwrapped instruments and sterilizes full load in 37 minutes.
› The B Universal 121°C cycle even allows the reprocessing of sensitive items, including porous such as surgical clothing.
Design and maintenanceDesign and maintenance

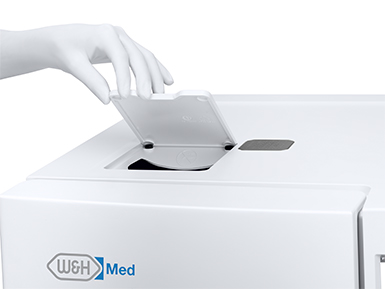

› The easily removable cover allows effortless access to the water tanks without tools. Filling is particularly easy with the integrated funnel.
› Thanks to the high level of reliability, the service interval is set to 4,000 cycles or 5 years.
› The design impresses with its ergonomic and functional shape and fits in anywhere thanks to modular feet and compact layout.
Enhanced traceabilityEnhanced traceability

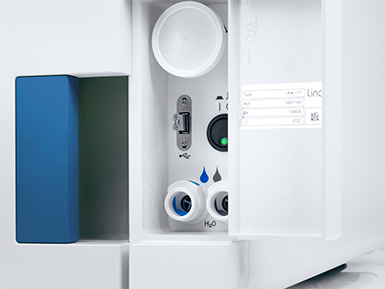

› The documentation is automatically
saved via a high-capacity USB stick.
› The barcode label printer provides additional support on traceability thanks to the opportunity to link cycle, sterilization package and patient.
› The cycle report printer ensures adequate paper documentation of the cycle.
Extended ConnectivityExtended Connectivity

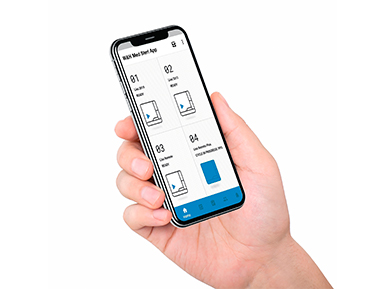

› The W&H Med Steri App allows controlling and remote monitoring of the sterilizer. Moreover, cycle history back-up saved on smartphone ensures extra-safety.
Unique upgradeabilityUnique upgradeability

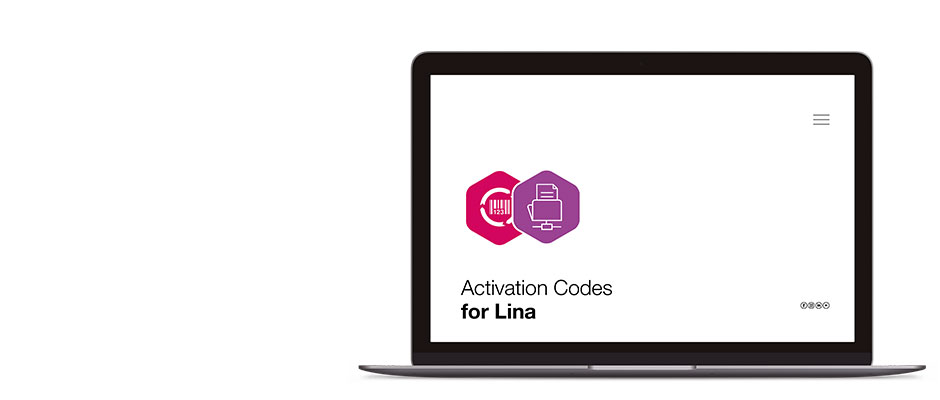

› The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enhance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lina sterilizer.
Six steps to your customized sterilizer:
- Purchase Activation Code of your choice from your local approved medical supplier.
- After receiving the related login code, go to activation-med.wh.com
- Enter this code along with serial number and model of your sterilizer.
- Your individual, secure Activation Code is generated.
- Enter this code in the menu of your Lina sterilizer.
- The feature is available.
![Lina Autoclave]( "Lina Autoclave")
![Lina Autoclave]( "Lina Autoclave")
![Lina Autoclave]( "Lina Autoclave")
Lina
supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 50 Hz
Lina 22
(RIK-122, 220 V)
REF 19952140Chamber size 22 l
Lina 22 AWF
(RIK-122, 220 V)
REF 19952141Automatic Water Filling
Chamber size 22 l
Lina 22 AWF
(RIK-122, 110 V)
REF 19952333Automatic Water Filling
Chamber size 22 l
![Lina Autoclave]( "Lina Autoclave")
![Lina Autoclave]( "Lina Autoclave")
![Lina Autoclave]( "Lina Autoclave")
Lina
supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, 60 Hz
Lina 22
(RIK-122, 220 V)
REF 19952232Chamber size 22 l
Lina 22 AWF
(RIK-122, 220 V)
REF 19952233Automatic Water Filling
Chamber size 22 l
Lina 22 AWF
(RIK-122, 110 V)
REF 19952333Automatic Water Filling
Chamber size 22 l
Download Area
FAQ
- Which is the maximum noise level of Lina?
- Do I need to carry out periodic testing on my Lisa/Lara/Lina/Lyla/Lexa?
- What is validation?
- What periodic tests do I need to carry out on my Lisa/Lara/Lina/Lyla/Lexa sterilizer?
- Do I need to document the results of all periodic tests?
- How long should I archive the documentation of regular tests?
- Does my sterilizer need any periodic qualification/validation?
- Whom should I contact to validate and maintain my sterilizer?
- How do I change consumable components on my sterilizer?
- How do I clean the water tanks and what products should I use?
- Which water quality should I use for my sterilizer?
- Should I pouch/wrap my instruments and how long can I store them after sterilization?
- The sterilizer remains switched OFF.
- Water is leaking at the front of the sterilizer.
- At the end of the cycle, there is residual water in the chamber.
- Stains or spots on instruments.
- No cycles are stored in the cycle history menu.
- When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
- The sterilizer enters into “Standby mode” immediately after being switched on.
- The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
- Warning about saving to the USB (HTML and SCL files)
- Warning about programmed maintenance.
- The cycle report printer does not work.
- The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
- Warning about consumable replacement.
- Should I call the service station before sending equipment for repair?
Instructions for use
Downloads
-
Lina sterilization programs
Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121 S naked 134 Temperature: 134 °C 134 °C 121 °C 134 °C Holding time (minutes): 5' 30'' 20' 30'' 20' 30'' 5' 30'' Total cycle duration
(minutes) including
complete drying:
Automatic from Typical
loadAutomatic from Typical
loadAutomatic from Automatic from Lina (220 V) 30’–54’50' 45’–69’65‘ 65’–74’ 30’–37’ Lina (110 V) 34’–64’56' 49’–79’71‘ 73’–82’ 36’–46’ Max. Load: maximum 4–6(1) kg/typical 2 kg/maximum porous 0.5–2(2) kgmax. 4 kg unwrappedMax. containers load: maximum 6 kgNot applicableTest cycles: Helix/Bowie and Dick/Vacuum Items supplied with: reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test
(1) Duration reported in the table refers to 4.0 kg. It is possible to sterilize up to 6.0 kg by drying time extension.
(2) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 2.0 kg by drying time extension.Lina 22
Series:
Lina
Type:
RIK-122
Chamber size:
22 l
Power supply:
200–240 V AC; 50 Hz or 60 Hz; 10 A single phase
100–125 V AC; 50 Hz/60 Hz; 12 A single phasePower consumption:
220 V: 2.0–2.4 kW
110 V: 1.2–1.5 kW
Overall dimension (w x h x d):
465 × 452 × 646 mm
Weight (empty):
42 kg
Main/Used water tanks:
4.8/4.8 l
Working range:
7 to 10 cycles
Usable space in chamber (w x h x d)³:
195 × 195 × 400 mm
Connection types:
1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)
(3) Usable space is referred to standard rack configuration.
Lina sterilizers were designed, certified and validated with the most stringent directives and standards:
N°2017/745
Medical Device Regulation
IEC 61326-1
Electromagnetic compatibility
2014/68/EU
Pressure equipment Directive
IEC 61010-1
Safety requirements sterilizer
EN 13060
Small steam sterilizer
IEC 61010-2-040
Specific requirements for steam sterilizer
IEC 61770
Electric appliances connected to the water mains
The sterilizer can be validated according to EN ISO 17665-1
