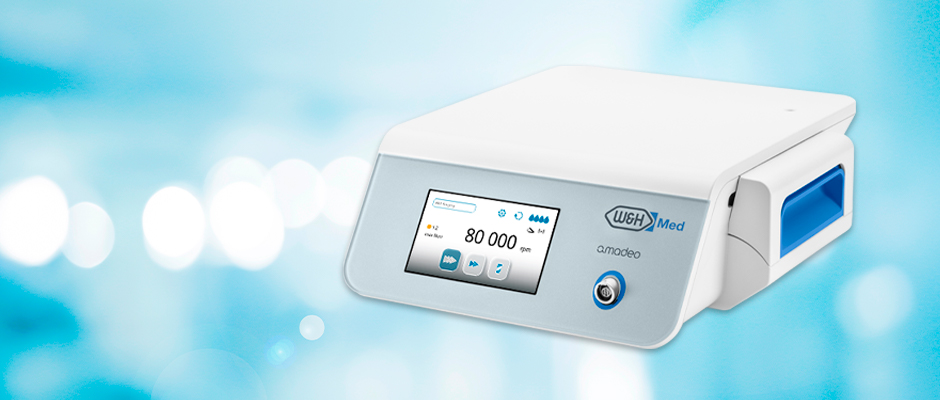

Amadeo

Amadeo shows its versatility

In ‘Amadeo’, surgeons have a high-quality and powerful surgical system for use in ear, nose and throat, craniomaxillofacial, thoracic and spine surgery, as well as special orthopaedic surgery.

  • Amadeo

    Composition of the highest calibre

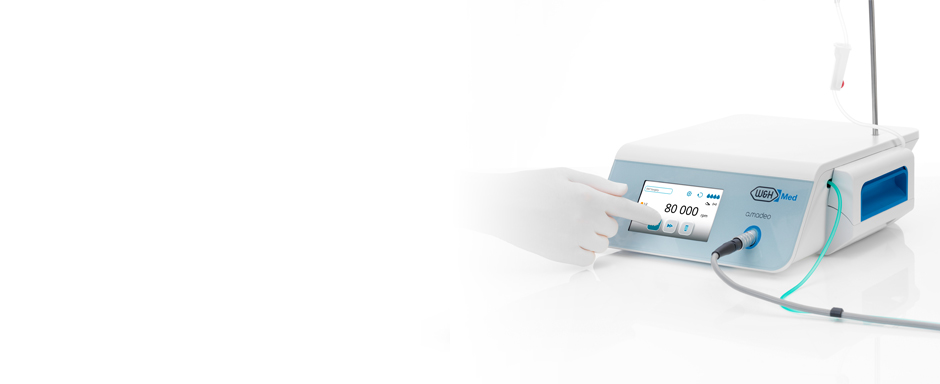

    Amadeo’s impressive and versatile user interface helps turn your surgical intervention into a masterpiece: after all, in addition to the expert knowledge of the surgeon, having a reliable and powerful drive unit is also key to the success of a surgical procedure.

    Overview:

    • Intuitive and effortless operation
    • Focus on the essentials
    • Safe and quick insertion of coolant hose
    • Wired or Wireless foot control

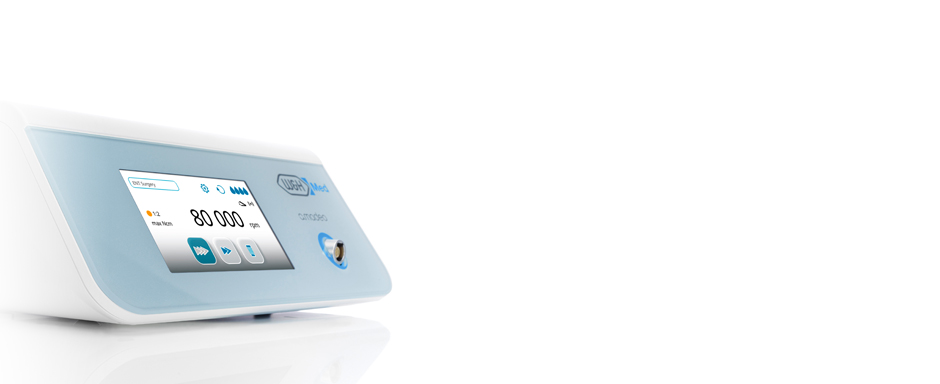

    • Intuitive and effortless operation

      Colour touch screen with user-friendly
      menu navigation and pre-set programs
      for structured surgical procedures.

    • Focus on the essentials

      During treatment, only the central
      functions are shown on the display.

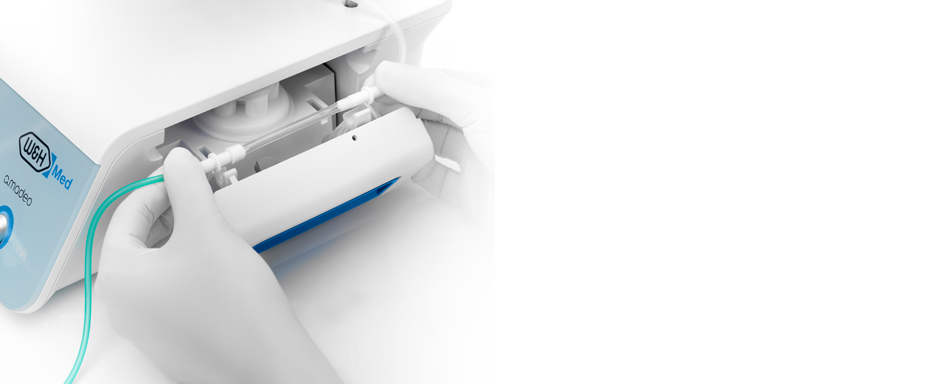

    • For surgical operation assistants

      The newly designed pump
      enables the coolant hose
      to be inserted safely and
      quickly.

    • More freedom of movement

      The wireless foot control allows
      you to choose the optimal location
      in your working area.

      • Ear, nose and throat

        Ear, nose and throat

        ENT surgery is a varied surgical field. Amadeo's product features include a specially designed program sequence for inserting bone conduction hearing implants.

      • Craniomaxillofacial

        Oral and maxillofacial

        Amadeo and W&H's innovative technology guarantee precise speed and torque regulation as well as continuous cooling for the full spectrum of craniomaxillofacial procedures.

      • Thoracic

        Thoracic

        Thanks to its high torque, Amadeo enables plate systems to be attached trouble-free in thoracic surgery.

      • Orthopaedics

        Orthopaedics

        Amadeo assists you in orthopaedic small bone surgery for procedures to reconstruct and stabilize bones and correct misalignments.

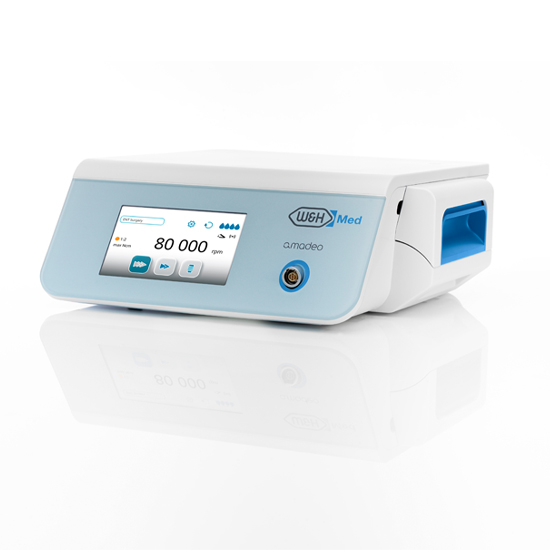

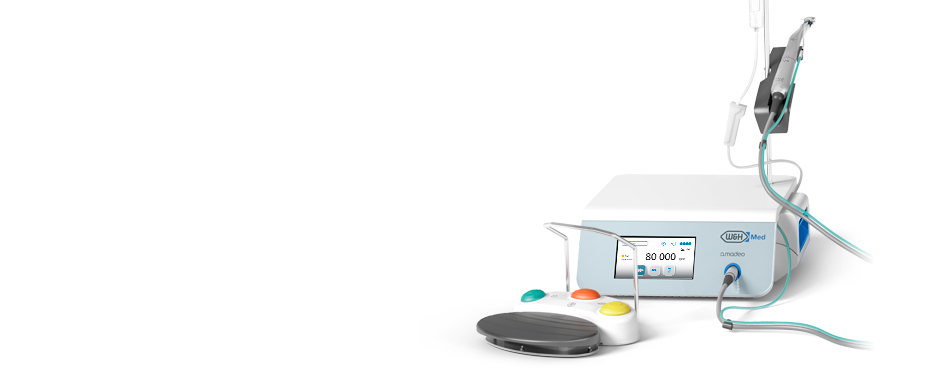

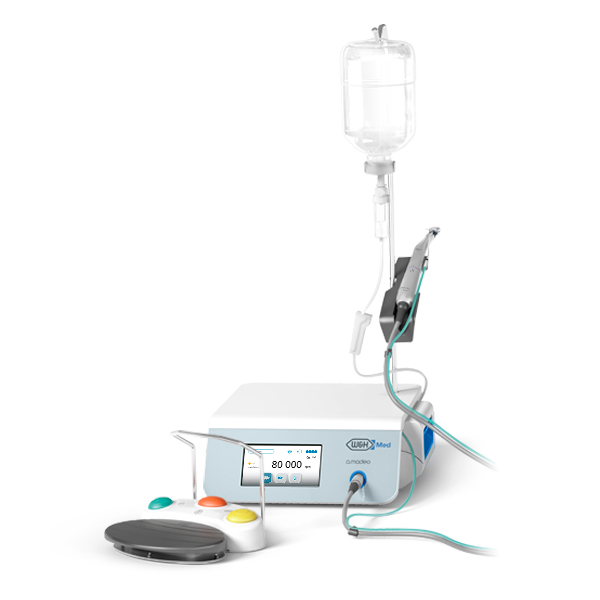

        Amadeo

        Amadeo

        consists of
        › Control unit
        › Motor with 3.5 m cable
        › Including 5 clips
        › Foot control S-N2 / S-NW
        › Mains cable
        › 3 disposable irrigation tubings
        › Stand

        Amadeo S-N2
        REF 90000266

        Wired Foot Pedal

        Amadeo S-NW
        REF 90000267

        Wireless Foot Pedal

        Contact us!

        Download Area

        Downloads

        Videos & Tutorials

        For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

        Accept

        Instructions for use

        Instructions for use
        Amadeo

        Service

      • Amadeo

        Type: Amadeo M-UK1023/1015/1010
        Mains voltage: 230 V 120 V 100 V
        Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A
        Frequency: 50 / 60 Hz
        Mains fuse (2 pcs): 250 V – T1,6AH
        Maximum power consumption: 170 VA/170 VA/140 VA
        Maximum power output: 80 W
        Max. torque at the motor: 6.2 Ncm
        Motor speed range in the nominal voltage range: 200 – 40,000 min -1
        Coolant flow rate at 100 %: at least 90 ml/min
        Dimensions (w x h x d): 10.3" x 4.0" x 11.5" (262mm x 100mm x 291mm)
        Weight: 7.7lbs (3.5kg)
        Foot control: S-N2 / S-NW
        Straight and contra-angle handpieces: S-9/S-10/S-11/S-12/S-15/WS-75/WS-75 LG
        Warranty: 12 months
        Warranty straight and contra-angle handpieces: 12 months
        Class: Class II medical electrical equipment


        Class II medical electrical equipment

        93/42/ECC Medical Device Directive
        IEC 60601-1 Safety requirements
        IEC 60601-1-2 Electromagnetic compatibility
