Saw Handpieces

Fast, powerful and durable

Even after many years of use at maximum speed, consistently high cutting performance is still guaranteed.

  • Amadeo

    Working in all directions

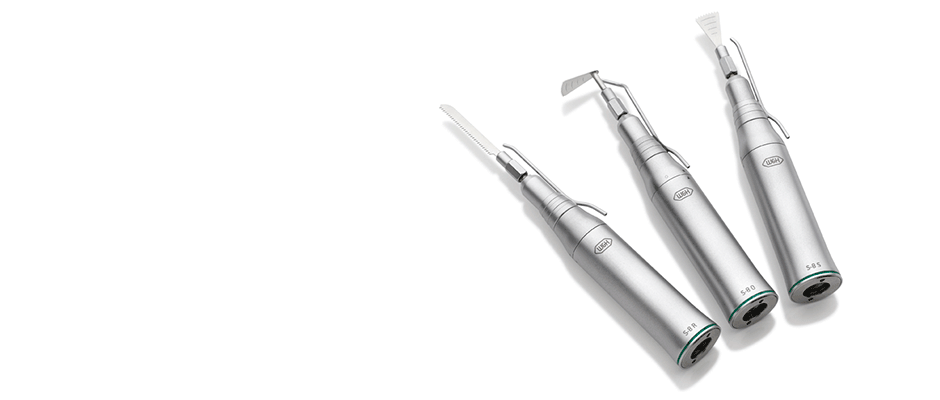

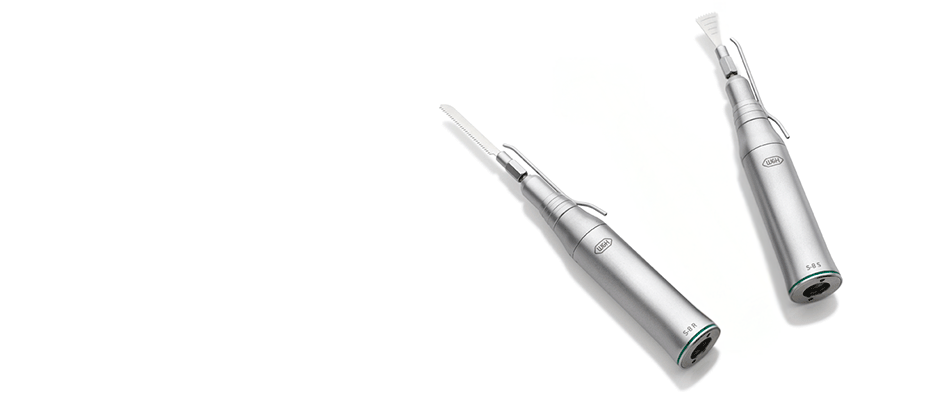

    Our saw handpieces S-8 R, S-8 S
    and S-8 O offer a perfect and long-term solution for osteotomy or bone removal with sagittal, oscillating or reciprocating movement.

    No matter what your requirements or those of your patients, W&H can fulfil them.

    Your advantages at a glance

    • Innovative saw-blade shape for outstanding cutting performance
    • One drive speed for all 3 saw types
    • Durable and robust due to high-grade stainless steel
    • For sagittal, oscillating or reciprocal movement
    • Range of saw blades for all surgical applications
    • Low vibration and exceptionally quiet
    • Can be dismantled for thorough cleaning

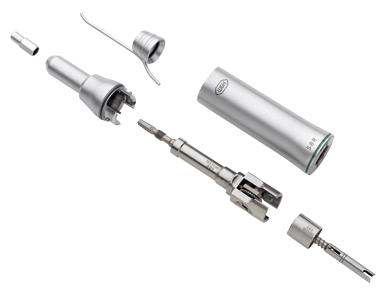

    Saw handpieces,
    can be easy dismantled

    Can be easy dismantled

    All three models were designed for use with maximal rotational speed while ensuring a uniform speed or cutting power of the instruments at the bone.

    But most importantly, they can be dismantled for simple and precise cleaning.
    Saw blades

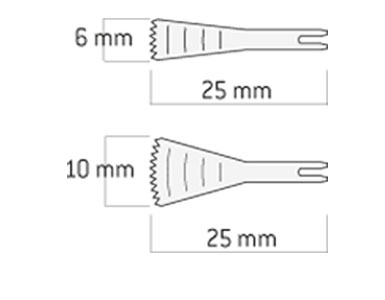

    Sagittal saw blades for Saw Handpiece S-8 S

    width 6 mm or 10 mm, incl. depth gauge on the saw blade (2.5 mm graduations), available as single pack or five pack

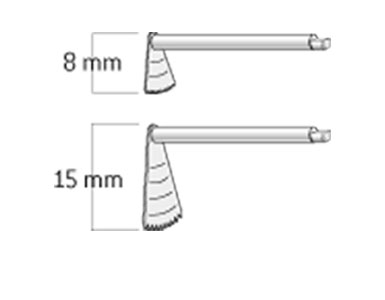

    Oscillating saw blades for Saw Handpiece S-8 O

    height 8 mm or 15 mm, incl. depth gauge on the saw blade (2.5 mm graduations), available as single pack

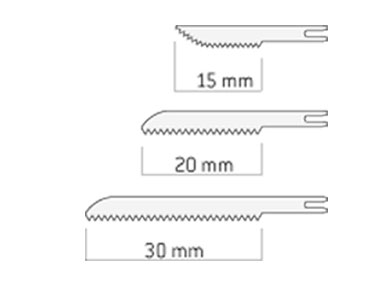

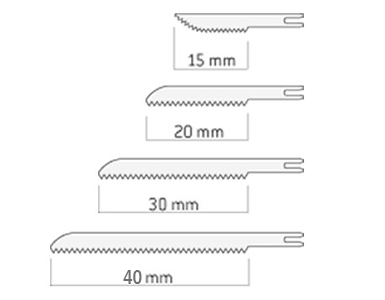

    Reciprocating saw blades for Saw Handpiece S-8 R

    length 15 mm, 20 mm or 30 mm, crosswise tooth setting for increased cutting power, available as single pack or five pack

    Saw Handpieces

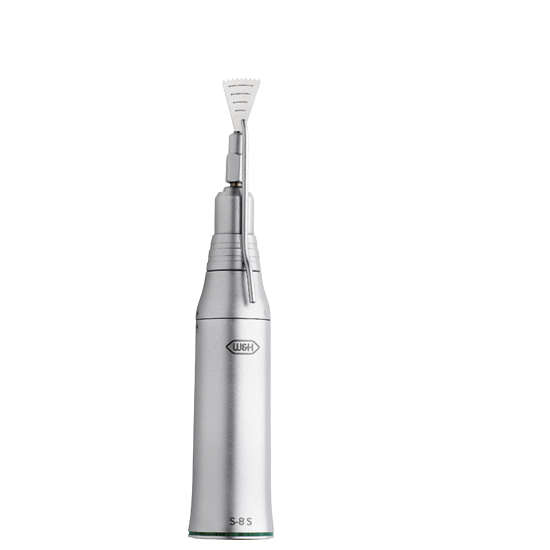

    Saw Handpiece S-8 S

    with sagittal motion,
    cutting direction parallel to the axis

    S-8 S
    REF 10100803

    Transmission ratio: 3,25:1
    Strokes / angles: 3°
    Frequency (strokes/min.): 12.300
    Drive speed: 40.000 min-1

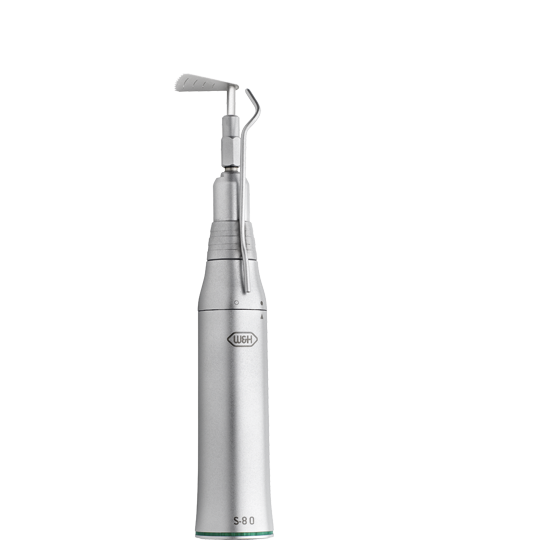

    Saw Handpiece S-8 O

    with oscillating motion,
    cutting direction 90° to the axis

    S-8 O
    REF 10100802

    Transmission ratio: 3,4:1
    Strokes / angles: 12°
    Frequency (strokes/min.): 11.800
    Drive speed: 40.000 min-1

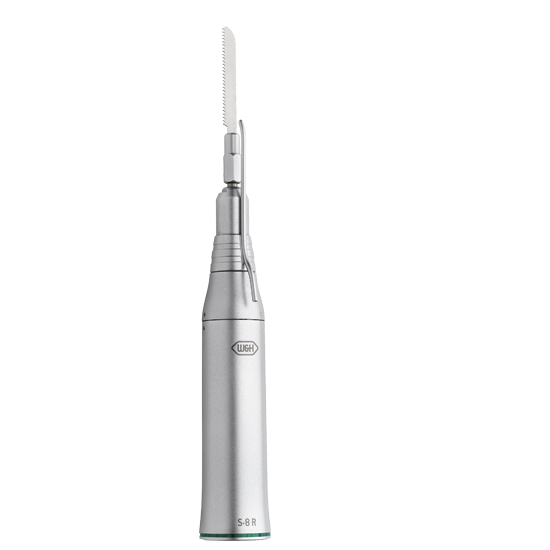

    Saw Handpiece S-8 R

    with reciprocating motion,
    forward / reverse cutting direction

    S-8 R
    REF 10100801

    Transmission ratio: 3,25:1
    Strokes / angles: 1,8 mm
    Frequency (strokes/min.): 12.300
    Drive speed: 40.000 min-1



    Download Area

    Downloads

    Videos & Tutorials

    For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

    Accept

    Instructions for use

  • Saw Handpieces

    Type: S-8 R S-8 O S-8 S
    Transmission ratio: 3.25:1 3.4.1 3.25:1
    Coupling system: ISO 3964
    Strokes / angles: 1.8 mm 12°
    Frequency (strokes/min.): 12,300 11,800 12,300
    Maximum drive speed: 40,000 min ⁻¹ 40,000 min ⁻¹ 40,000 min ⁻¹
    Can be easily dismantled: yes yes yes
