Essential and safe
Your advantages at a glance
- High hygiene standards for your peace of mind
- Special drying features ensure processed items are easy to handle
- Large capacity 22 litres for high work load
- Low maximum power consumption
- Accurate distribution of sterilization temperature and thus high efficiency
- Anti-dust filter for long service interval
- Simple user interface for comfortable handling and maintenance
- Modular feet for easy installation
![MS sterilizer]( "MS sterilizer")
![MS sterilizer]( "MS sterilizer")
![MS sterilizer]( "MS sterilizer")

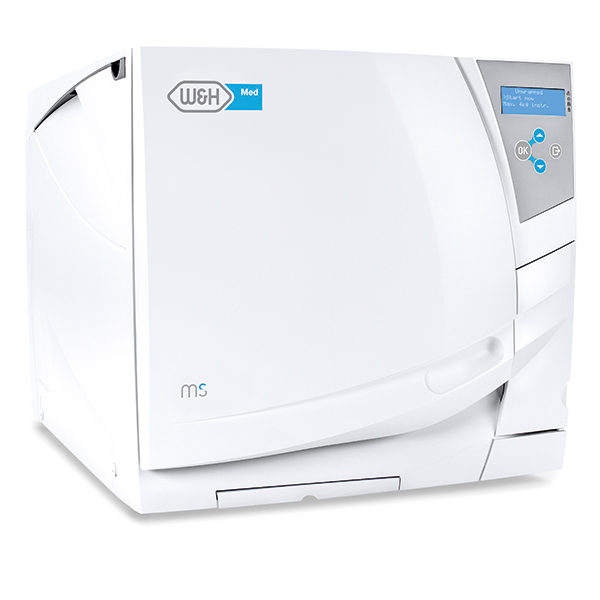

MS
supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, factory test
MS 110 V
REF 19952120Chamber size 22 litre
100–125 V AC; 50/60 Hz; 15 AMS 220 V
REF 19952123Chamber size 22 litre
200–240 V AC; 50/60 Hz; 8.75 ADownload Area
Downloads
Instructions for use
Service
-
MS sterilization programs
Sterilization cycle: Unwrapped Wrapped Gentle Temperature:
134°C
134°C
121°C
Holding time (minutes):
6’
6’
15’
Total cycle duration (minutes)*:
21’– 25’
58’– 62’
55’– 59’
Max. load:
4 kg of unwrapped instruments
1–3 kg of wrapped instruments**
1 kg of wrapped heat-sensitive
instuments or 4 kg
of unwrapped instrumentsItem supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, factory test
* Total cycle duration – the times quoted are for the 220 V model and vary depending on the initial conditions of the chamber (hot/cold). The duration of the cycle may vary depending on the type and weight of the load, voltage, etc.
** The default drying guarantees the sterilization and drying of 3 kg in 62’ total time, placing 1 kg per tray. The drying time may be manually reduced when processing 1 kg thus obtaining a total cycle time of 38’.
MS 110 V MS 220 V Chamber size:
22 l
Power supply:
100–125 V AC; 50/60 Hz; 15 A
200–240 V AC; 50/60 Hz; 8.75 A
Power consumption:
1.6 kW
1.75 kW
Overall dimension (w x h x d):
450 x 435 x 599 mm
Weight (empty):
38 kg
Mean sound levels (LWA):
63 dB
Main/Used water tanks:
4/3.5 l
Working range:
8 cycles
Usable space in chamber (w x h x d):
195 x 195 x 390 mm
Connection types:
Serial port for printer, automatic water filling connection
MS sterilizers were designed, certified and validated with the most stringent directives and standards:
93/42/EEC
Medical Device Directive
IEC 61326-1
Electromagnetic compatibility
2014/68/EU
Pressure Equipment Directive
IEC 61010-1
Safety requirements
ANSI/AAMI ST55
Table-top steam sterilzers
IEC 61010-2-040
Specific requirements for steam sterilizers
The sterilizer can be validated according to EN ISO 17665-1
