Multidem

The water demineralizer system

The water demineralizer system Multidem supplies top quality demineralized water for generating steam in autoclaves. As a result, it ensures consistent and optimized performance, thereby extending the service life of your sterilizer or purification unit.

Additional spray gun
In addition, Multidem is also equipped with a spray gun. This is ideal for rinsing instruments prior to sterilization.

  • Service Oil F1 - Manual maintenance

    Very easy to operate and use

    To replace a consumed filter cartridge,open the locking handle.

    Turn the locking handle as far as it will go, then press the rinse button to release the pressure and take the filter head off the consumed filter cartridge.

    Once you have pulled off the protective cap, place the filter head vertically onto the new cartridge. Multidem is then ready to go again.

    Your advantages at a glance

    • Consumed filter cartridges can be replaced quickly and easily without tools.
    • Multidem is suitable for use with many conventional autoclaves and purification units.
    • The spray gun can also be used to fill the sterilizers manually with demineralized water.
    • For Multidem no external power supply is required.
    • The water demineralizer system delivers consistently high water quality thus preventing limescale deposits in the sterilizers.
    Suitable for use with conventional sterilizers and purification units
    The innovative locking handle on the filter head ensures fast and convenient filter replacement

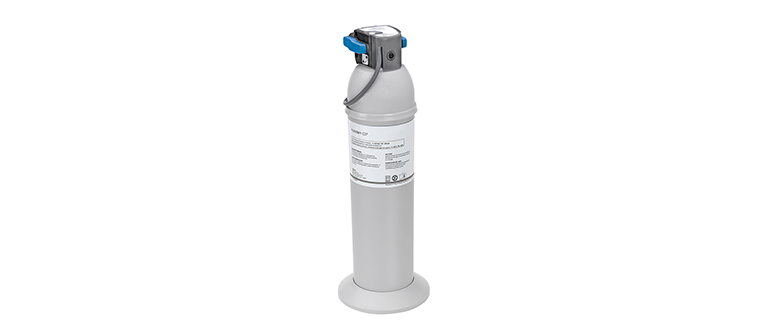

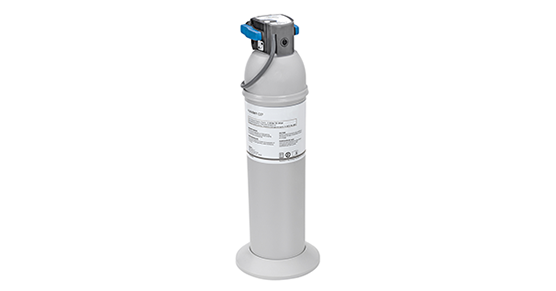

    Multidem C27

    Multidem C27

    Water supply for W&H Med sterilizers
    or other brand sterilizers

    Multidem C27
    REF 19723112

    consists of: filter head, cartridge with 2.7 kg,
    tubes and connectors (incl. Water Block®)

    Request Price


    Download Area

    Downloads

    Instructions for use

    Instructions for Use Multidem

  • Type: Multidem C27

    Operating pressure:

    2 bar – 8.6 bar (max.)

    Water temperature (inlet):

    4 – 30 °C / 40 – 86 °F

    Nominal flow rate:

    60 l/h

    Water quality (out):

    demineralized (EN 13060)

    Water quality (in):

    drinking water

    Weight:

    2.7 kg

    Width/depth/height:

    124 / 123 / 476 mm

    Operating position:

    vertical

    Tube lengths:

    2 x 3 m

    Safety valve:

    yes

    Backflow preventer:

    EB
